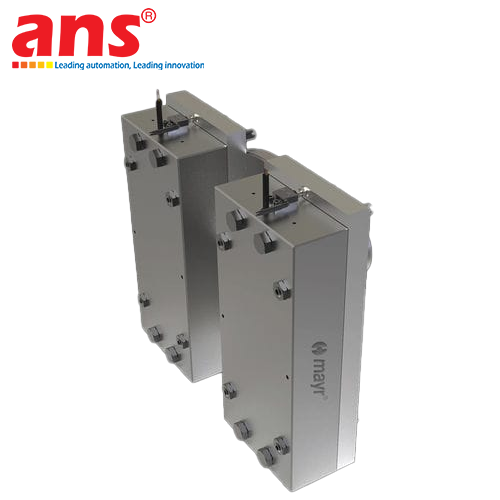

MAYR ROBA®-duplostop® REDUNDANT DUAL-CIRCUIT ULTRA-SLIM ELECTROMAGNETIC ELEVATOR SAFETY DUAL BRAKE

DEEP PRODUCT OVERVIEW & HIGH-END VERTICAL TRANSPORT SAFETY INFRASTRUCTURE
The Mayr ROBA®-duplostop® represents the definitive elite tier of specialized industrial solid-state safety mechanism engineering, configured as an ultra-slim redundant Electromagnetic Safety Brake designed specifically to safeguard vertical hoist lines, developed and manufactured 100% in Germany by world-renowned safety component pioneer Chr. Mayr GmbH + Co. KG. This advanced device functions as the ultimate mechanical fail-safe "double lock infrastructure" tailored specifically to govern high-capacity gearless elevator traction machines (Gearless traction machines) and modern machine-roomless (MRL) elevator configurations. Operating purely on a fail-safe spring-applied mechanism that clamps heavy structural friction faces locked immediately upon plant grid current failure, it releases linear movement only when active electromagnetic magnetic flux fields are energized (Spring-applied safety brake topology). Packing a fully redundant dual-circuit layout running two separate braking circuits side-by-side on a single compact housing assembly, the ROBA®-duplostop® solves the severe multi-axis spatial clear boundaries found inside tight elevator shafts serviced via certified Mayr Vietnam distribution networks.

REDUNDANT MECHANICAL CORE ACHIEVINGTurn-Key EN 81-20/50 TYPE-EXAMINATION VALIDATION
The fundamental protective capability of the ROBA®-duplostop® model aligns precisely with the most demanding global vertical mobility safety directives:
- Absolute Dual-Circuit Redundant Architecture: Under strict European safety standards EN 81-20 and EN 81-50, all automated passenger lifting systems must integrate separate redundant braking modules to act as an uncompromised barrier against uncontrolled upward car acceleration paths (UCMP - Unintended Car Movement Protection) or downward gravity drop accidents. The ROBA®-duplostop® satisfies this safety decree by deploying two independent brake halves operating in parallel. Should one circuit path suffer unexpected voltage loss or friction abrasion, the auxiliary circuit retains 100% nominal holding torque capacity, anchoring the traction disc instantly.
- Certified Type-Examination Compliance: The dynamic brake unit holds official prototype design approval listings, proving millisecond-level response speeds during emergency shutdown events to shield facility operators from terminal lift failure risks.

ULTRA-SHORT AXIAL GEOMETRY RECLAIMING SPACE FOR GEARLESS MOTORS & MRL TopoLOGIES
The primary physical engineering advantage and core asset of the ROBA®-duplostop® series when placed alongside bulky traditional double-brake stacks resides in its optimized structural form factor:
- Extreme Space Compression (Short design length): Modern architectural trends increasingly favor high-efficiency pancake-style gearless traction machines to eliminate independent rooftop machine rooms entirely (MRL Elevators). Mayr developers compressed magnetic coil packing densities and minimized armature stroke paths to condense the dual-circuit module down to an exceptional ultra-thin width scale. This short axial length allows the entire drive line to mount flush against shaft beam steel frame columns, minimizing overall machine clearance profiles to expedite rapid hot-swap installation and field adjustments.
- Acoustic Disruption Attenuation: Engineered with high-durability mechanical dampening rings, the ROBA®-duplostop® thoroughly quells sharp metal-to-metal impact resonance common during armature cycling, maintaining a low acoustic profile that preserves silent travel comfort for residential villa home elevator cabins.

REAL-TIME MICRO MOTION POSITION TRACKING & PREDICTIVE DIAGNOSTICS LIFECYCLE
- Intelligent Condition Monitoring Interface: To guarantee operational security loop statuses on active lines, the device incorporates technical channels hosting integrated dual mechanical Microswitches (Release Monitoring loops) for both circuit segments. This contact array routes real-time closed-loop analytical tracking signals identifying exact Engaged or Released positions directly to the master elevator control panel or local PLC systems.
- Edge-Level Predictive Maintenance Network: The diagnostic sensor array actively tracks operating micro air gaps (Air gap window). The moment persistent 24/7 friction lining abrasion pushes mechanical clearances beyond tight factory tolerance parameters, the system triggers a dedicated wear warning signal (Wear monitoring signal). This feeds a diagnostic code to central DCS automation systems, empowering service crews to execute hardware calibration changes well before mechanical lockouts compromise vertical lift lines. The solid-state package requires zero grease ingress throughout its complete life span, establishing 100% maintenance-free operational security.

DYNAMIC PROPULSION METROLOGY & HOLDING PERFORMANCE DATA
- Equipment Manufacturer: Chr. Mayr GmbH + Co. KG (Germany)
- Full System Part Number Certified: ROBA®-duplostop® Series
- Device Structural Profile: Redundant ultra-slim electromagnetic spring-applied elevator dual safety brake
- Redundancy System Architecture: Fully Redundant Dual-Circuit Mechanical Configuration (Redundant dual-circuit layout)
- Default Operational Principle: Failsafe mechanical lock engaged via integrated spring force upon line power termination; electromagnetically released via inductive coil initialization.
- Lift Code Compliance Certifications: Full prototype design approval certificate tracking EN 81-20 and EN 81-50 elevator safety codes, supporting complete Unintended Car Movement Protection (UCMP) directives.
- Nominal Holding Torque Scale (Braking Torque): Variable multi-tier configurations tailored to fit matching industrial elevator gearless traction machine frame capacities.

MECHANICAL PROPERTIES & STRUCTURAL METALLURGY
- Form Factor Footprint: Ultra-short axial design length profile (Space-saving thin geometry), optimized explicitly for disk-style Gearless Traction Motors and Machine-Roomless (MRL) frame clear spaces.
- Stator & Armature Base Substrate: High-density structural alloy steel engineered for high magnetic flux transmission, precision-ground to a flat layout resisting torsional deflection stress.
- Friction Lining Material Composition: High-coefficient asbestos-free friction linings characterized by high thermal stability and advanced physical wear resistance.
- Lubrication & Preventative Maintenance Mandate: Sealed solid-state build requiring zero grease ingress; 100% Maintenance-free concerning physical lubrication routines.

ELECTRICAL RATINGS & INTEGRATED DIAGNOSTIC LOGIC
- Compatible Coil Input Supply Voltage Rail: Standard industrial DC voltage configurations (e.g., 24V, 104V, 180V, 207V DC managed via technical panel rectifier blocks).
- Condition Monitoring Hardware Matrix: Factory-fitted independent dual mechanical Microswitches tracking distinct circuit stroke lines.
- Diagnostic Automation Telemetry Feedback: Real-time closed-loop signal channels routing separate Release/Engage Monitoring parameters paired with automated micro Air Gap Wear Monitoring Signals straight to localized elevator PLC controllers.

ENVIRONMENTAL SPECTRUM & FIELD COMMISSIONING MANDATES
- Lift Shaft Cleanliness safety: Carbon-dust-free enclosed design releasing zero particulate contamination, running silently with minimal noise generation during engagement.
- Primary Industrial Deployment Profiles: High-efficiency Gearless Traction Motors, low-profile machine-roomless (MRL) lift frameworks, passenger elevator shaft safety modernization overhauls, and high-end residential villa home lift installations.
- Mechanical Production Origin: 100% Engineered and Manufactured in Germany (Germany Origin).
