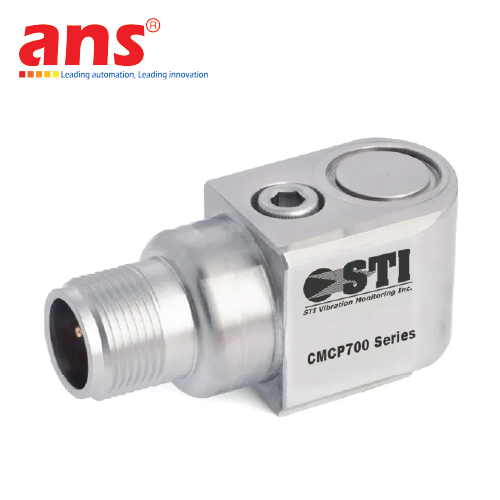

Gia tốc kế CMCP785T-I15-M8 STI Vibration Monitoring Inc Vietnam
Price: Contact
Brand: STI Vibration Monitoring Inc
Category: 4.0 Industry
Supplier: ansvietnam
Origin: USA
0911472255Gia tốc kế CMCP785T-I15-M8 STI Vibration Monitoring Inc Vietnam
Description
The CMCP785T Side Exit General Purpose Accelerometer with Temperature Output is the ideal accelerometer for on most types of rotating equipment. The CMCP785T is lightweight and can be use for magnet or permanent mount applications. The sensor is designed so that cross wiring will not harm the internal components and provides protection against ground loops. The CMCP785T is waterproof and can be hosed down or submersed when using the proper extension cable such as the CMCP602 series. Additional sensitivities such as 10 mV/g, 30 mV/g, 50 mV/g, 250 mV/g and 500 mV/g are also available in the same sensor package and can be ordered by adding the sensitivity after the base part number. Contact STI for more details.
Features:
- Sensitivity: 100 mV/g ±10%
- Temperature Output: 10 mV/°C (0-1VDC)
- Frequency Response (±3dB): 0.8 Hz to 12 kHz (48 to 720k CPM)
- Dynamic Range: ±80 g, peak
- Settling Time: 1.5 Second
- Mounting: 1/4"-28 UNF or M8x1.25 Captive Bolt
- Power Requirements: 18-30 VDC
- Temperature Range: -67 to 284°F (-55 to 140°C)
- Case Material: 316L Stainless Steel
- Connector: 3 Pin MIL-C-5015
STI Vibration Monitoring, founded in 1989, leads the industry in creating and supplying vibration monitoring systems and accessories for predictive maintenance. STI prioritizes affordable solutions over traditional "rack-based" devices with their single-channel transmitters and monitors for vibration, position, and temperature. This results in cost-effective and reliable monitoring options for standard equipment and beyond. Discover our affordable integral cables now!
