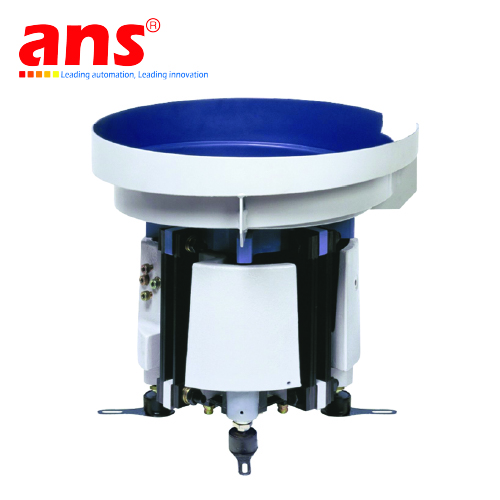

Dual Motion Parts Feeder DM-65C SINFONIA Vietnam
Price: Contact
Brand: Sinfonia
Category: 4.0 Industry
Supplier: ansvietnam
Origin: Japan
Gọi lại cho tôi
0911472255Dual Motion Parts Feeder DM-65C SINFONIA Vietnam
Setting vertical amplitude at the lowest possible setting greatly reduces bouncing of workpieces. Thin, flat workpieces remain separate and are conveyed smoothly.
Work is conveyed as though gliding, with minimal impact between workpieces and track, resulting in minimal noise.
| Model | DM-30D | DM-38D | DM-45D | DM-65C | |
|---|---|---|---|---|---|
| Drive unit outer diameter (mm) | φ310 | φ390 | φ460 | φ670 | |
| Drive unit height (mm) | 290 | 295 | 365 | 572.5 | |
| Drive unit weight (kg) | 53 | 81 | 140 | 312 | |
| Rated voltage (V) | 200 | ||||
| Rated current (A) | Horizontal | 2.0 | 2.0 | 4.0 | 4.0 |
| Vertical | 0.8 | 0.8 | 2.0 | 2.0 | |
| Vibration frequency (Hz) | 70~110 | 30~40 | |||
| Unprocessed bowl diameter (mm) (cylindrical) |
φ300 | φ375 | φ450 | φ650 | |
| Max. bowl diameter (mm) (cylindrical) |
φ500 | φ600 | φ700 | φ1000 | |
| Max. loaded weight (kg) | 9.2 | 17.0 | 27.5 | 70.0 | |
| Max. amplitude (mm) （Unprocessed cylindrical bowl periphery） |
Horizontal |
1.8 | 2.0 | 4.0 | |
| Vertical | 0.3 | 1.0 | |||
| Cross section area of power cable (mm2) | 0.75×5cores | ||||
| Applicable controller | C10-4DM | ||||
