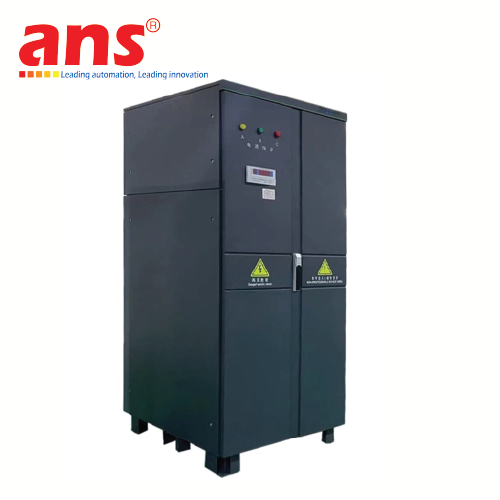

Charge & Discharge ACEY-RCDS-1000V400A-2CH-450KW Acey Vietnam
Price: Contact
Brand: Acey
Category: 4.0 Industry
Supplier: ansvietnam
Origin: China
Gọi lại cho tôi
0911472255Charge & Discharge ACEY-RCDS-1000V400A-2CH-450KW Acey Vietnam
Application and function
- Application: mainly used for circle life testing and quality control of li-ion battery, lead-acid battery, Ni-Cd battery, NiMH battery and so on in production line or in lab.
- Support battery circle life testing, capacity testing, charging characteristic testing, discharging characteristic testing, charge retention capability testing, charge and discharge efficiency testing, over charge or over discharge rate affordability testing.
Working environment and technical parameter
- Stand alone power supply: AC 220V±10%, frequency: 50HZ±5%.
- Power supply of the whole cabinet: AC 380V±10%, frequency: 50HZ±5%.
- Maximum input power of the whole cabinet: 14.3 kW (4CH)
- Working temperature: 0℃~ 45℃.
- Humidity: less than ≤ 85%R.H (non-condensing).
- No severe shake, no corrosive gases, no flammable or explosive gases around.
- Resolution: AD 16 bit.
