Digital Integration Fluxmeter TM7600-1k Tunkia Vietnam
Price: Contact
Brand: Tunkia
Category: 4.0 Industry
Supplier: ansvietnam
Origin: China
0911472255Digital Integration Fluxmeter TM7600-1k Tunkia Vietnam

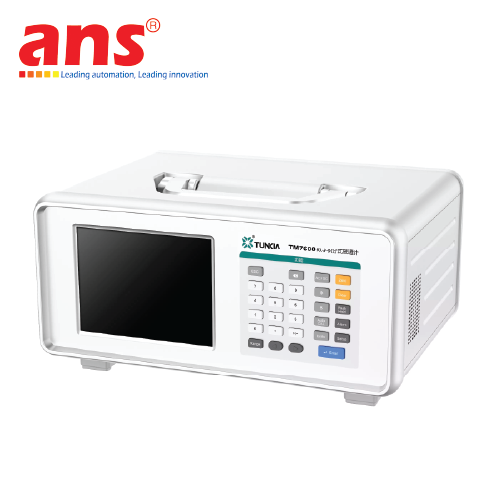

TM7600 Digital Integration Fluxmeter
TM7600 is a series of high precision magnetic flux measuring instruments, using advanced digital sampling and integration methods. It overcomes the defects of traditional capacitance-integrated (RC-integrated) fluxmeters, such as the long-term drift of capacitance, piezoelectric effect, leakage current and bias voltage/current of amplifier, which lead to the difficulty of improving the measurement accuracy and the obvious integral drift after clearing. It provides an effective measurement method for the research and development of advanced magnetic materials, the manufacture of high-end industrial products and the traceability of magnetic flux value.
Summary
TM7600 is a series of high precision magnetic flux measuring instruments, using advanced digital sampling and integration methods. It overcomes the defects of traditional capacitance-integrated (RC-integrated) flux meters, such as the long-term drift of capacitance, piezoelectric effect, leakage current and bias voltage/current of amplifier, which lead to the difficulty of improving the measurement accuracy and the obvious integral drift after clearing. It provides an effective measurement method for the research and development of advanced magnetic materials, the manufacture of high-end industrial products and the traceability of magnetic flux value.
Features
- • Accuracy: 0.02%, 0.05%, or 0.1%.
- • The drift is ≤ 0.5 μWb/min at accuracy 0.05%.
- • Unit switch: Wb, mWb, Vs, mVs, Mx.
- • Alarm of exceeding the upper / lower limit.
- • One-key reset and zero drift.
- • Class 0.02 support ф (t) and U(t) measurement curve display.
- • Saves the voltage zero at the input end of the coil.
- • Support coil resistance input to eliminate effects.
- • Support various of measuring coils.
- • Digital and analog signal (option) output.
- • Large LCD touch screen.
- • Small size, light weight.
