The DEIF AGC 150 Hybrid (Advanced Genset Controller) represents a groundbreaking, highly advanced utility automation control platform engineered by DEIF Group (Denmark), purposefully tailored for modern industrial electrical grids incorporating multi-source renewable energy assets. As modern commercial sectors aggressively shift toward sustainable green energy models, integrating extensive solar photovoltaic (PV) fields or heavy-duty Battery Energy Storage Systems (BESS) into existing diesel-fueled captive power plants introduces severe technical volatility regarding real-time voltage profiles and active frequency stability during erratic weather shifts. The AGC 150 Hybrid acts as the overarching energy supervisor, continuously assessing downstream consumer load demand matrices while forecasting the active instantaneous capacity output originating from green arrays. Leveraging these complex parameters, the device executes sophisticated load-sharing algorithms, automated genset start/stop triggers, or dynamic battery charging/discharging commands to maintain generator operations at peak efficiency thermal ranges, maximizing green output absorption while driving fossil fuel consumption down to record lows.

The system distinguishes itself via its proprietary Spinning Reserve Management control architecture. Should rapid cloud blankets cause a sudden, severe drop in solar field PV output, the AGC 150 Hybrid immediately commands supplementary active power injection from connected BESS battery matrices or flags instantaneous emergency cranking sequences to backup diesel gensets, entirely shielding the microgrid against dangerous frequency swings that trigger widespread localized circuit breaker trips. The updated Human-Machine Interface (HMI) is specifically re-engineered for hybrid infrastructure topologies, utilizing a high-contrast graphical LCD panel to portray a dynamic Single-Line Mimic Diagram illustrating solar panels, BESS accumulators, utility mains, and diesel units paired with intuitive power flow direction arrows. The unit offers native integration across standard industrial communication pathways, including Modbus serial lines and CAN bus networks, ensuring seamless data integration with commercial Solar Inverters, Battery Management Systems (BMS), and electronic engine ECUs. Encased in a heavy-duty, high-thermal resilient Thermoplastic molding conforming to UL 94 V-0 self-extinguishing parameters, the AGC 150 Hybrid yields exceptional operational security, systematically slashing operating expenditures (OPEX) and accelerating return on investment (ROI) terms for hybrid utility installations.

• Manufacturer: DEIF
• Country of Origin: Denmark
• Product Category: Advanced Hybrid Microgrid Control System

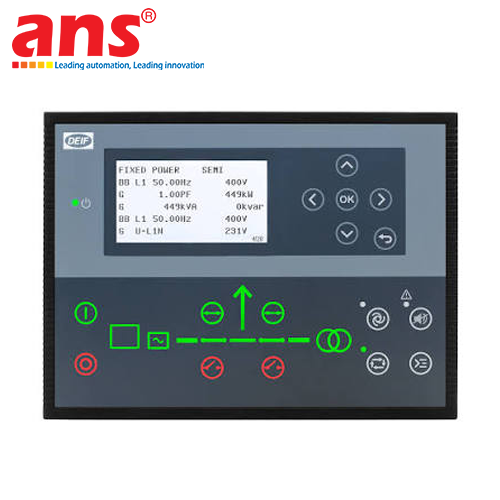

• Model Designation: AGC 150 Hybrid
• User Interface Elements: Backlit monochrome graphical LCD displaying a dedicated hybrid single-line mimic system (PV, BESS, Mains, Genset indicators) alongside real-time active (kW) and reactive (kVAR) metrics
• Communication Interfacing Array: 2x CAN bus lines (tailored for internal PMS meshes and J1939 engine ECU linking), 1x Modbus RS485 serial gateway for external Inverter/BMS tracking, 1x Ethernet RJ45 network port, 1x front-mounted USB configuration slot
• AC Voltage Measurement Scope: True RMS nominal 100V to 690V AC direct inputs (Measurement Accuracy Class 0.5); Current sensing via external CT secondary inputs (x/1A or x/5A)
• Grid Frequency Sensing Range: Broad nominal 30 to 70 Hz (Sensing Accuracy Class 0.1)
• Onboard Hardware I/O Configuration: 12 digital inputs, 12 programmable dry-contact relay outputs, 4 multi-functional analog inputs (supporting PT100 temperature arrays, VDO standard sensors, or standard 4-20mA industrial loops)
• Advanced Hybrid Automation Algorithms:
  - Solar Inverter power limit control (PV penetration control / Dynamic Curtailment)
  - Battery charge/discharge cycle management and State-of-Charge (SoC) tracking for BESS assets
  - Automated Spinning Reserve optimization and capacity headroom calculation
  - Intelligent fuel-saving logic determined by real-time green energy availability curves
• Integrated System Protection Matrix (ANSI Codes): Under/Over Voltage (27/59), Under/Over Frequency (81O/81U), Overcurrent / Active Overload (50/51, 32), Phase Sync-Check Verification (25)
• Operating Auxiliary Power Supply: Broad 8V to 36V DC range (Engine cranking brown-out proof architecture)
• Environmental Protection Rating: IP65 for front visual facade (when flush panel-mounted utilizing standard tight-fit sealing gasket), IP20 for rear wire cages
• Quality & Standard Compliance Marks: CE marked, UL industrial listed, certified for global heavy industrial application matrices
