The DEIF AGC 150 Generator - Stand alone (Advanced Genset Controller) represents a premium-grade, highly intelligent utility automation control platform engineered by DEIF Group (Denmark), purposely optimized for standalone single generator unit management. In modern engineering designs where multi-generator parallel setups or interconnected common busbar networks are unnecessary, deploying a compact controller streamlined specifically for stand-alone applications is the most effective technical roadmap. This configuration significantly decreases primary hardware overhead costs and minimizes structural programming and panel layout complexities, while continuously maintaining the highest degree of safety protection loops for both the prime mover diesel/gas engine and the alternator core. The AGC 150 Stand-alone unit comes embedded with an advanced suite of automated execution logic, including highly responsive Automatic Mains Failure (AMF) detection algorithms and direct control signaling for Automatic Transfer Switches (ATS), ensuring that reliable emergency backup power is delivered to vital downstream utility loads within mere seconds following a primary grid blackout.

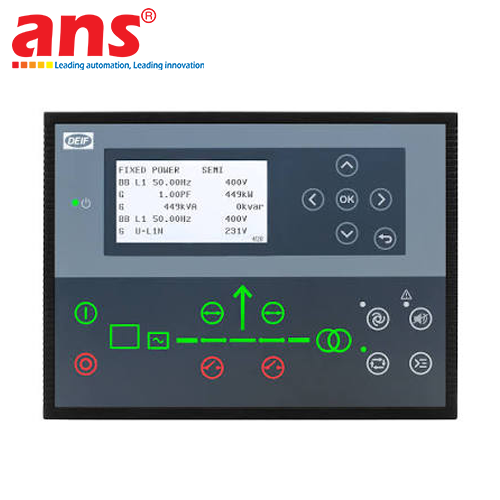

The device stands out by delivering an intuitive, next-generation Human-Machine Interface (HMI) that incorporates a high-contrast graphical LCD screen complete with uniform backlighting to project dynamic single-line mimic diagrams representing the status of the single genset versus utility breaker positions. Comprehensive parameter metrics—encompassing active power (kW), reactive power (kVAR), AC currents, frequencies, oil pressure trends, and coolant thermal behavior—are projected via readable graphical data blocks alongside industry-standard ANSI alarm codes, allowing onsite operators to diagnose dynamic grid anomalies without needing complex specialized software. The AGC 150 Stand-alone offers native engine ECU interfacing through its dedicated J1939 CAN bus network, executing deep data reads from premium engine platforms including Cummins, Caterpillar, Volvo Penta, Perkins, and Yanmar. Furthermore, it incorporates DEIF’s proprietary Emulation Tool environment, empowering software engineers to safely simulate, map, and test complex control logic blocks on a PC before final physical power deployment at the facility, mitigating hardware failure risks stemming from incorrect field configuration. Complying with rigorous CE markings, industrial UL listing parameters, and global design codes, the AGC 150 Generator - Stand alone stands as the definitive choice for securing uninterrupted power infrastructure.

• Manufacturer: DEIF
• Country of Origin: Denmark
• Product Category: Advanced Stand-alone Genset Controller
• Model Designation: AGC 150 Generator - Stand alone
• User Interface: Backlit monochrome graphical LCD displaying real-time dynamic single-line mimic diagrams paired with status LED signaling matrices
• Communication Port Array: 1x CAN bus line (dedicated for electronic engine ECU J1939 interfacing), 1x Modbus RS485 serial connection (for Scada/BMS telemetry), 1x Ethernet RJ45 network port, 1x front-accessible USB interface for direct DEIF Utility Software programming
• AC Voltage Measuring Range: True RMS evaluation spanning nominal 100V to 690V AC (Accuracy Class 0.5) for both single generator inputs and utility mains lines
• AC Current Sensing Scope: Compatible with external current transformer secondary outputs of x/1A or x/5A (Measurement Accuracy Class 0.5)
• Frequency Sensing Range: Nominal 30 to 70 Hz (Measurement Sensing Accuracy Class 0.1)
• Integrated I/O Architecture: 12 digital inputs, 12 programmable dry-contact relay outputs, 4 multi-functional analog inputs (supporting PT100 temperature probes, VDO industrial sensors, or standard 4-20mA current loop inputs)
• Embedded Automation Functions: Automated standby backup cranking sequences (AMF), Automatic Transfer Switch (ATS) changeover logic execution
• Alternator & Engine Protection Schemes (ANSI Codes):
  - Overcurrent / Active Power Overload Monitoring (50/51, 32)
  - Under/Over Voltage Protection (27/59)
  - Under/Over Frequency Protection (81O/81U)
  - Engine diagnostic alarms: Low Oil Pressure, High Coolant Temperature, Overspeed detection
• Auxiliary Operating Supply Input: Broad 8V to 36V DC range (Engine cranking brown-out proof architecture)
• Environmental Protection Rating: IP65 for front panel fascia (when panel-mounted using structural tight-fit sealing gasket), IP20 for rear wire cages
• Chassis Construction: Heavy-duty, high-thermal resilient Thermoplastic molding, self-extinguishing conforming to UL 94 V-0 parameters
• Standard Quality Compliance: CE marked, UL listed, certified for global industrial applications
