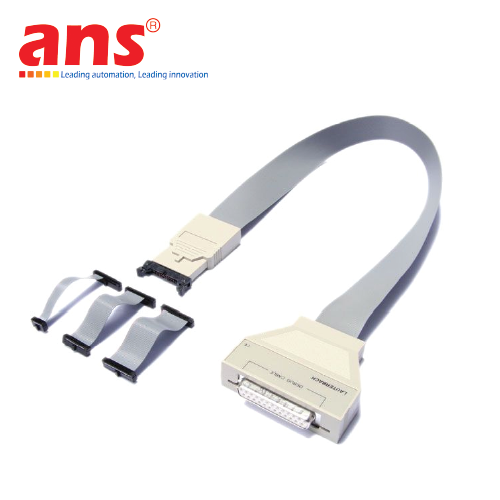

Debug Probe LA-3203 Lauterbach Vietnam
Price: Contact
Brand: Lauterbach
Category: Probe - Đầu dò
Supplier: ansvietnam
Origin: Germany
0911472255Debug Probe LA-3203 Lauterbach Vietnam
Supports TriCore, PCP and GTM debugging included.
Supports JTAG, DAP, DXCPL, DXCM.
Supports DAP streaming under certain conditions (see below).
Includes the TRACE32 software for Windows, Linux and macOS
on DVD and for download.
Requires PowerDebug debug base module from 2004 and newer.
(Works with all PowerDebug except Gen 1 (LA-7702 & LA-7704).)
Requires LA-3849 if 16 pin JTAG (TriCore) connector is used.
DAP Streaming is supported if you use the device with a
PowerDebug X51, X50, E50, E40, or PRO and your PowerView software is version R.2023.09 or newer (build 160619 or higher).
If these requirements are met, DAP Streaming is possible only in DAP mode (DAP2, DAP3, DAPWide, DAP4).
For performance reasons, we recommend DAPWide at 160 MHz (for a transfer rate of 320 Mbit/s).
