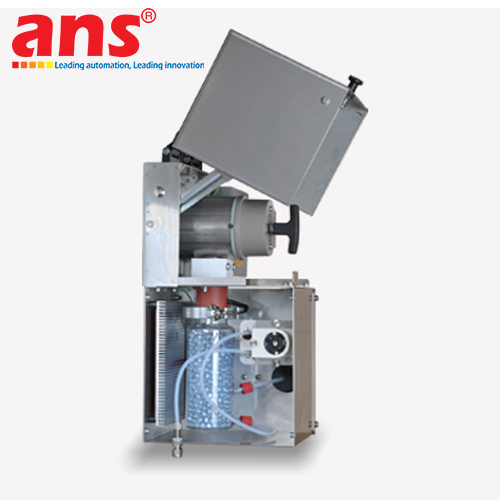

The Bühler GAS 222.20 Denox Heated Gas Sampling Probe is designed and engineered by Bühler Technologies GmbH (Germany), a global leader in gas analysis preparation systems. This probe is specially developed for demanding flue gas sampling applications in DeNOx process systems (including SCR and SNCR technology) across power generation plants, cement factories, chemical complexes, and industrial waste incineration units.

A key feature of the GAS 222.20 Denox model is its integrated self-regulating electric heating element, maintaining a constant probe head temperature of up to 200°C (392°F). Continuous high-temperature operation effectively prevents water vapor condensation and eliminates the risk of Ammonium Bisulfate (ABS) salt formation—a primary cause of sample line clogging and downstream analyzer component damage in DeNOx monitoring setups.

Furthermore, the unit features an integrated high-pressure pneumatic blowback (backpurge) port. This mechanism permits automated, periodic purging of accumulated dust from the filter element without stopping process operation or dismantling the probe, thereby minimizing maintenance costs, extending service life, and delivering uninterrupted sample gas flow to downstream analyzers.

• Manufacturer: Bühler Technologies GmbH
• Country of Origin: Germany
• Product Series: Heated Gas Sampling Probe (DeNOx Specialized Series)
• Model: GAS 222.20 Denox
• Heating Temperature: Up to 200°C (392°F), automatically controlled
• Maximum Sample Gas Temperature: Up to 600°C (1112°F) (Depending on sampling tube material selected)
• Ambient Temperature Range: -20°C to +60°C
• Maximum Operating Pressure: 6 bar (87 psi)
• Wetted Materials: Stainless Steel 1.4571 (SS316Ti), Ceramic, FKM
• Internal Filter Element: Ceramic or SS316L Stainless Steel, standard pore sizes 2 µm / 5 µm
• Blowback Mechanism: Integrated pneumatic backpurge valve for automated filter cleaning
• Test Gas Connection: Integrated calibration port for system integrity checks
• Mounting Flange: DN65 PN6 or ANSI 3" 150 lbs
• Power Supply: 115V AC or 230V AC, 50/60 Hz
• Power Consumption: Approx. 400W – 500W
• Ingress Protection Rating: IP55 / IP65 (Suitable for outdoor installation)
