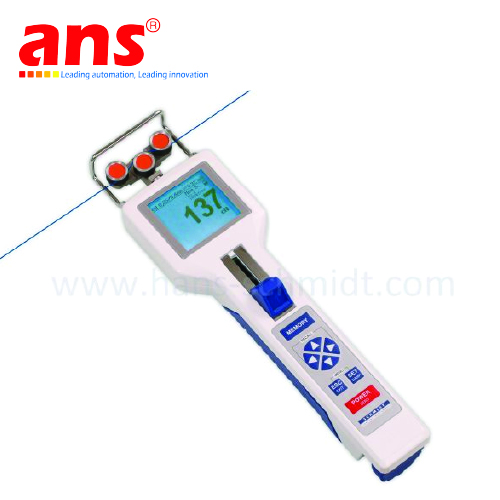

Tension Meter DTS-20K-ST Hans-schmidt  Vietnam

Key Features

• Large backlit LCD display with 3 selectable modes:

  • Numeric only

  • Numeric + bar graph

  • Numeric + (Time–Tension) graph

• 90° rotatable display for improved readability.

• Innovative material clamping system that minimizes force.

• Thickness compensation: material diameter can be set via adjustment wheel and displayed on screen (not available on all models).

• Automatic zero setting at each measuring position using advanced sensor technology.

• Factory calibration plus 4 memory slots for customer-specific calibration materials.

• Calibration fine-tuning for use with materials different from the reference sample.

• Programmable MIN/MAX alarms with visual indication on the display.

• High-speed data sampling (8 kHz) with recording of MIN, MAX, last value, PEAKS, average, and standard deviation.

• Selectable measurement units: cN, daN, g, kg, N, lb.

• Menu available in English or German, with flexible configuration for operator needs.

• Password protection available for selected functions.

Standard Features

• All essential elements visible to the operator: guide rollers, measuring material, and indicators.

• Fiber guide system and roller shifting mechanism ensure easy insertion of running material.

• V-groove guide rollers with ball bearings for smooth operation.

• Rubber-coated handle for secure grip during use.

• Rugged aluminum housing for durability and long service life.

• Rechargeable LiPo battery (up to 40 hours of continuous operation) with AC power adapter included.

• CE certified, with electrostatic discharge and interference protection.

• Certificate of compliance (EN 10204 – type 2.1) included with each order.
