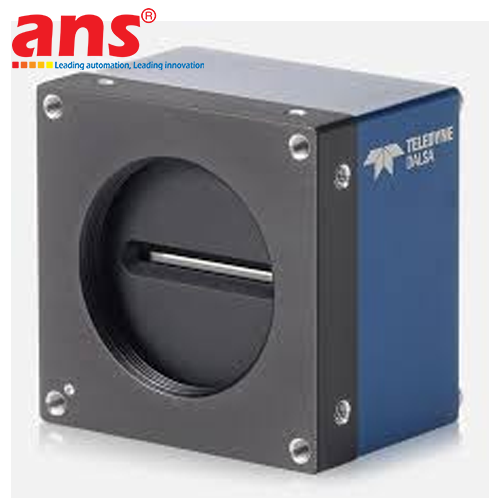

The Teledyne DALSA Model LA-CC-08K05B-00-R High-Speed Industrial Line Scan Camera, part of the renowned Linea™ family, is engineered and manufactured by Teledyne DALSA Inc. in Waterloo, Ontario, Canada. It is a premier machine vision instrument designed to capture pristine continuous imaging of fast-moving products across web inspection, electronic assembly, and high-throughput sorting applications.

Model Number Configuration Breakdown (LA-CC-08K05B-00-R):
- LA: Teledyne DALSA Linea™ high-performance industrial line scan camera series.
- C: Camera Link high-bandwidth serial communication interface (dual SDR-26 connectors).
- C: Bilinear Color CMOS architecture (dual line array), enabling native RGB color rendering or single-channel monochrome/luminance data extraction with superior signal-to-noise ratios.
- 08K: 8192-pixel horizontal resolution (8K).
- 05B: Maximum line acquisition rate of 48 kHz (48,000 lines per second).
- 00: Standard factory hardware build.
- R: Fully compliant with international RoHS environmental directives.

Key Engineering Features & Operational Advantages:
- Proprietary Teledyne DALSA Bilinear CMOS Sensor: Features an 8192 x 2 pixel array with large 7.04 µm x 7.04 µm photosites, delivering exceptional quantum efficiency and optical sensitivity. Delivering low noise (9.5 e-) and an impressive dynamic range of up to 71 dB with three times the full well capacity of legacy architectures, it uncovers microscopic flaws across reflective surfaces and low-contrast textures.
- High-Speed 48 kHz Scanning Performance: Capturing 48,000 lines every second, the camera easily inspects fast continuous webs, moving conveyor belts, and high-speed sorting lanes without motion blur or dropped line artifacts.
- Advanced On-Board FPGA Image Preprocessing: Features real-time on-board Flat Field Correction (FFC) to compensate for lens vignetting and non-uniform illumination profiles, lens shading compensation, and multiple Regions of Interest (Multi-ROIs) to optimize frame grabber transmission bandwidth.
- Deterministic Camera Link Data Transmission: The Camera Link (Base/Medium/Full/Deca) interface provides zero-latency image streaming directly into host frame grabber cards with selectable 8-bit or 12-bit output depths. Backed by Teledyne's Trigger-to-Image Reliability (T2IR) framework, the camera tracks the complete signal path from hardware encoder trigger to memory buffer to ensure data integrity.
- Ultra-Compact & Mechanically Rugged Form Factor: Encased in a compact housing measuring only 76.0 x 76.0 x 30.7 mm and weighing approximately 310 g. Equipped with an M72 x 0.75 threaded lens mount (convertible to F-mount via adapters) for pairing with high-resolution line scan lenses.

Target Industrial Sectors & Applications:
- Lithium-ion battery manufacturing: In-line defect detection on cathode/anode coated foils, separator films, and pouch cell sealing edges.
- Semiconductor & Electronics: Bare printed circuit board (PCB/FPC) track inspection, wafer surface defect mapping, solder paste AOI, and flat panel display (FPD/OLED) quality verification.
- Continuous Web Inspection: Quality grading for paper mills, metal strip processing, plastic films, solar PV wafers, and architectural float glass.
- High-Speed Packaging & Printing: Barcode/matrix verification, label alignment, security print inspection, and color print registration at high web speeds.
- High-Throughput Sorting: Agricultural seed/grain grading, recycled plastic flake optical sorting, and postal parcel scanning.

• Manufacturer: Teledyne DALSA (Teledyne Digital Imaging Inc.)
• Country of Origin: 100% Canada (Made in Canada)
• Product Line: Linea™ Series Camera Link Line Scan Cameras
• Model Designation: LA-CC-08K05B-00-R
• Sensor Technology: Proprietary Bilinear Color CMOS Line Scan Sensor
• Effective Resolution: 8192 x 2 pixels (8K)
• Pixel Dimensions: 7.04 µm x 7.04 µm
• Active Sensor Length: Approximately 57.7 mm
• Maximum Line Acquisition Rate: 48 kHz (48,000 lines/second)
• Spectral Sensitivity Range: 400 nm to 700 nm (Visible spectrum)
• Imaging Output Formats: RGB Color or selectable single-channel Monochrome / Luminance extraction
• Pixel Bit Depth: 8-bit or 12-bit user-selectable
• Full Well Capacity: Up to 3x higher than standard legacy models
• Random Read Noise: Ultra-low 9.5 e-
• Dynamic Range: 71 dB (60 dB standard mode)
• Analog / Digital Gain: 1x to 12.5x
• Data Communications Interface: Camera Link (Base, Medium, Full, Deca via 2x SDR-26 connectors)
• Trigger & Synchronization: External hardware trigger via Hirose or Camera Link CC1, rotary encoder control
• On-Board Features: Flat Field Correction (FFC), Lens Shading Compensation, Multiple ROIs
• Optical Lens Mount: M72 x 0.75 mount (F-mount compatible via adapter)
• Input Power Supply: 12 VDC to 24 VDC via Hirose 6-pin connector
• Power Dissipation: Approx. 8 W (9 W max)
• Cooling Method: Passive conduction dissipation through metal chassis (Uncooled)
• Dimensions: 76.0 mm x 76.0 mm x 30.7 mm
• Unit Mass: Approximately 310 g (10.9 oz)
• Operating Temperature Envelope: 0°C to +65°C (measured at camera front plate)
• Regulatory Approvals: CE, FCC, RoHS, GenICam compliant.
