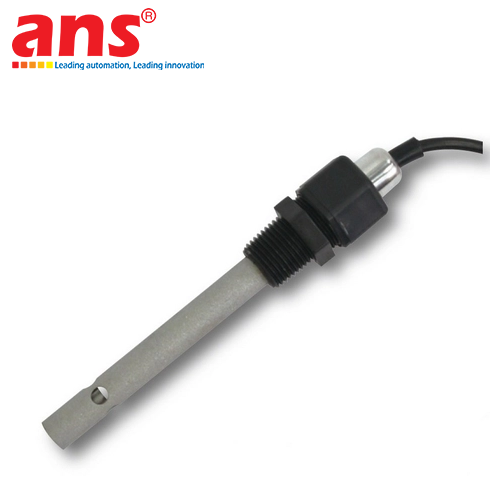

SUNTEX 8-11-3 CONDUCTIVITY AND RESISTIVITY SENSOR

DEEP PRODUCT OVERVIEW & ULTRAPURE WATER INFRASTRUCTURE
The SUNTEX 8-11-3 is a high-precision industrial 2-electrode electrochemical analytical instrument (2-Electrode Conductivity / Resistivity Sensor), engineered and manufactured 100% at the China production facility (China Origin) under the strict structural and quality quality inspection criteria of the renowned brand SUNTEX. This advanced device functions as an irreplaceable, uncompromised front-line quality verification asset deployed to track pure water loops (RO/DI tracks) and notably Ultrapure Water (UPW) systems. Within modern high-tier automated processing networks, sustaining the microscopic purity of the water media is a critical parameter to protect manufacturing yields. The SUNTEX 8-11-3 marries highly sensitive alternating current sensing loops, an inert chemical electrode composition, and responsive on-board temperature compensation to stream clean, drift-free analytics, letting centralized control nodes regulate ionic contaminant profiles across shifts.

2-ELECTRODE METROLOGY & THE REJECTION OF POLARIZATION EFFECTS
The sensor executes its quality profiling loops based on a direct contact metrology method utilizing a pair of co-axially aligned metal electrodes with tight geometric spacing. A highly stable, high-frequency alternating current (AC) voltage is driven between the two conductive metallic surfaces to project a localized potential field through the fluid column. The dynamic transport of free ions present inside the water stream generates a measurable current loop; the scarcer the ionic density (signifying high-grade purity), the smaller the returned current value, and the higher the calculated volumetric resistivity.
- The primary technical edge hardcoded into the SUNTEX 8-11-3 is its modulated alternating current excitation signal. This layout entirely neutralizes the electrochemical polarization effect—the false capacitive charge accumulation along the liquid-metal boundary interface that causes signal drift and amplitude calculation errors in baseline sensors. Consequently, the direct contact interface retains extreme millimetric sensitivity, tracking ultra-sparse ion traces effortlessly.

REFINED CELL CONSTANT K = 0.05 cm⁻¹ – THE EXPERT FOR ULTRAPURE ANALYSIS
The technical geometric metric of a micro Cell Constant $K = 0.05\text{ cm}^{-1}$ (also designated as C) validates the elite sensing prowess of the 8-11-3 model. By minimizing the physical distance between the two concentric electrode blocks while scaling up the interfacial contact area via gold-ratio mechanical parameters, the sensor amplifies and captures micro-volt changes sparked by trace ions floating inside the fluid. This targeted architecture allows the hardware to seamlessly cover an ultra-low conductivity range from $0.05\text{ }\mu\text{S/cm}$ to $100.0\text{ }\mu\text{S/cm}$, alongside an impressive resistivity spectrum expanding from $1.0\text{ M}\Omega\cdot\text{cm}$ up to the absolute theoretical purity benchmark of uncompromised ultrapure water at $20.0\text{ M}\Omega\cdot\text{cm}$. Because the core logic is specifically optimized for ultra-low trace levels, the SUNTEX 8-11-3 is strictly barred from raw wastewater or raw tap water applications, where heavy ionic debris would saturate the receiving circuits and trigger fatal over-range system codes.

INERT SS316L METALLURGY & NTC 30K AUTOMATIC TEMPERATURE COMPENSATION
- High-Grade 316L Stainless Steel (SS316L) Composition: The outer body barrel and both contact electrode rings are precision-machined from a solid block of premium 316L stainless steel. The extreme chemical inertness of SS316L protects the sensor from pitting or oxidization under active process lines up to 7 bar, and completely prevents metal ion leaching back into the ultrapure water stream—a non-negotiable standard in semiconductor silicon wafer cleaning and pharmaceutical injection fluid preparation.
- Smart Automatic Temperature Compensation (ATC) Architecture: Liquid conductivity metrics scale exponentially with ambient fluid temperature fluctuations. To completely override this thermodynamic variable, the SUNTEX 8-11-3 houses an integrated negative temperature coefficient NTC 30K ohm thermistor embedded straight behind the sensor probe core. This thermal tracking node logs real-time fluid shifts (operating seamlessly across 0°C to 60°C) and streams data back to the central transmitter unit to execute automatic temperature compensation algorithms, accurately normalizing all analytical readouts back to the universal international standard of 25°C.

STANDARD MECHANICAL INTERFACE & PIPELINE COMMISSIONING DETAILS
The transmitter barrel features a standard mechanical 1/2" NPT thread layout, enabling field installation personnel to thread the probe straight into pipeline Tee-fittings on the main processing line or lower it directly into specialized continuous bypass sampling chambers. This variant comes standard with a factory-molded, heavy-duty signal connection cable fused directly into the rear casing block with a generous 10-meter standard physical length. This solid-body molded block prevents fluid moisture from creeping inside the terminal box via capillary wire channels and grants field engineers extensive layout clearance when routing data from the hiện trường measurement point back to the central automation panel enclosure.

ANALYTICAL METROLOGY & PERFORMANCE DATA
- Equipment Manufacturer: SUNTEX Instruments
- Equipment Model Code: 8-11-3
- Product Classification: Volumetric Liquid Conductivity & Resistivity Analysis Sensor
- Primary Sensing Method: Direct contact metrology utilizing a 2-electrode structural configuration
- Geometric Cell Constant Coefficient (K / C): 0.05 cm⁻¹
- Volumetric Conductivity Scale: 0.05 μS/cm to 100.0 μS/cm
- Volumetric Resistivity Scale: 1.0 MΩ·cm to 20.0 MΩ·cm (Reaches high-tier UPW ultrapure water threshold limits)
- Operation Restriction Mandate: Engineered solely for low-ionic clean water infrastructure; completely barred from raw wastewater loops.

ELECTRICAL DATA & TEMPERATURE COMPENSATION
- Integrated Temperature Tracking Element: NTC 30K ohm micro-precision thermistor
- Temperature Compensation Architecture: Smart Automatic Temperature Compensation (ATC loop)
- Normalization Reference Target: Electronic conversion algorithm normalizes analytical curves straight back to the 25°C standard index
- Emitter Signal Characteristics: Modulated high-frequency Alternating Current (AC) excitation loop preventing polarization error spikes at electrode surfaces.

MECHANICAL PROPERTIES & MATERIAL COMPOSITION
- Outer Shell Casing Substrate: Premium technical-grade 316L Stainless Steel (SS316L)
- Contact Electrode Ring Metallurgy: 316L Stainless Steel (SS316L) ensuring absolute chemical inertness and zero metal leaching risks
- Pipeline Mechanical Connection: Standard 1/2" NPT mechanical thread layout (Direct thread-in to standard Tee-fittings or flow cells)
- Integrated Interconnect Lead Interface: Factory-molded, water-sealed continuous cable with a standard physical length of 10 meters
- Net Device Mass: Optimized according to high-torque solid stainless steel protective cylindrical structures.

ENVIRONMENTAL SPECTRUM & APPLICATION ALIGNMENT
- Permissible Fluid Temperature Spectrum: 0°C to +60°C continuous runtime
- Maximum Allowed Process Pressure: 0 to 7 bar structural limit (Evaluated under stabilized thermal conditions of 25°C)
- Mechanical Production Origin: 100% Manufactured in China (China Origin - Under rigid certified technical parameters of SUNTEX)
- Primary Industrial Deployments: Defensive safety loop monitoring for industrial RO/DI filtration plants, high-precision semiconductor silicon wafer washing, medical distilled water production, and high-pressure power utility Boiler feedwater conditioning to negate scaling risks.
