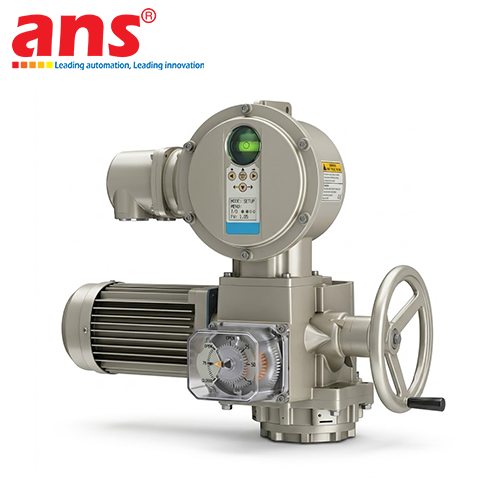

LEUZE / SIPOS AKTORIK 2SA5021-5CE00-4BB3-Z MULTI-TURN ELECTRIC ACTUATOR WITH INTEGRATED INVERTER

DEEP PRODUCT OVERVIEW & HEAVY INDUSTRIAL VALVE INFRASTRUCTURE
The SIPOS Aktorik 2SA5021-5CE00-4BB3-Z (hardwired with factory-customized premium option modifiers B58 + C50) is a premium heavy-duty industrial variable speed multi-turn electric actuator (Heavy-duty Multi-turn Electric Actuator), belonging to the historic SIPOS 5 Flash lineage developed and precision-machined by the global valve automation pioneer SIPOS Aktorik (Germany, currently a flagship division owned under the global universal automation leader AUMA Group). The legacy 2SA5... prefix represents elite architectural engineering that natively tracks its heritage back to Siemens' specialized high-tier automation and drive blocks before branching out into the standalone SIPOS entity, retaining uncompromised internal circuit endurance. Manufactured under a strict "EU/China Origin" standard, this cỗ máy is rigidly assembled either at the central manufacturing plant in Germany or within their strategic joint-venture infrastructure in China under unified global quality assurance codes, guaranteeing total material composition alignment. It functions as the ultimate technological choice to automate, profile, and modulate large-bore Gate Valves and linear-stroke Globe Valves, or couple seamlessly with heavy reduction Gearboxes to drive high-pressure Butterfly and Ball units active across thermal power generation utility beds, municipal raw water pumping grids, massive water purification plants, and national gas/crude trunk pipeline networks.

INTEGRATED FREQUENCY CONVERTER BLOCK FOR REFINED ADAPTIVE SPEED CONTROLS
The primary technical asset securing the undisputed global dominance of SIPOS drive systems is the direct factory integration of an intellectual digital Frequency Converter (Built-in Frequency Converter) housed straight inside its ruggedized terminal block casing. Completely moving away from traditional baseline actuators that implement abrupt contactor-driven ON/OFF cycles that strain motor windings at a frozen constant speed, this localized inverter engineering activates high-resolution profile control:
- Programmed Soft Start & Soft Stop Profiles: The embedded controller dynamically scales structural velocity variables. During the mid-travel section of the valve stroke, the motor accelerates to peak velocity to expedite line cycles. However, the precise millisecond the valve gate or plug enters its mechanical closing cutoff zone (Seat area), the inverter scales down the supply current frequency, tapering the dynamic velocity down to an ultra-slow micro-creeping velocity. This lets the plug seat home smoothly, entirely neutralizing the fluid "Water Hammer" phenomenon—the violent hydraulic pressure shockwaves that fracture industrial pipeline grids, rupture underground conduits, and crack pipe flange gaskets.
- Micro-Minimal Startup Inrush Currents: The inverter-driven start sequence ensures that the initial motor Inrush Current never surges past the standard full-load nominal threshold limits. This clean electrical execution blocks voltage drops or grid sụt sụp across adjacent plant electronics, minimizes internal copper winding thermal stress, and expands the running lifecycle of upstream circuit breakers and contactors inside the automation cabinet panel.

CUSTOMIZED RUGGED "-Z" PACKAGE HARDWARE MODIFIERS (B58 + C50)
The trailing alphanumeric code "-Z" hardwired onto the model index maps specific high-spec facility retrofits custom-injected at the factory line to meet severe infrastructure requirements:
- Integrated Option B58 (Control and Digital Communication Expansion): Denotes that the internal conditioning chassis is expanded via an advanced multi-layered microprocessor card, embedding high-purity industrial communication bus nodes (supporting native Profibus DP or Modbus RTU communication protocols) alongside dồi dào digital state feedback logic relays. This enables live, dual-track real-time telemetry streaming directly back to master DCS networks, such as Siemens SIMATIC PCS 7 control room architectures.
- Integrated Option C50 (Mechanical Surface and Enclosure Protection Package): Regulates that the outer metallic casting shell is treated via a multi-layered technical high-build Epoxy finish (Offshore heavy coating) designed to block severe maritime salt air, chemical acid mists, and industrial humidity corrosion. Concurrently, all primary mechanical mating joint seals are upgraded to the elite IP68 international insulation rating, keeping the internal digital electronics perfectly dry and uncompromised under long-term deep-water immersion constraints.

BRUTE TORQUE DELIVERY FROM 400 VAC 3-PHASE RAILS & NON-INTRUSIVE LOCAL POSITIONING
The SIPOS 2SA5021-5CE00-4BB3-Z drive block is energized via heavy-duty industrial 400 VAC - 3 Phase, 50 Hz power grids. The raw performance of a three-phase motor configuration paired with frequency inverter modulation generates a massive Breakout Torque limit, effortlessly snapping open large-diameter valve stems that have undergone heavy corrosion freezing or rust binding over decades of field inactivity—a task that fatally stalls baseline single-phase hardware setups. For real-time field commissioning, the faceplate incorporates a Local Control Station operating on an elite Non-intrusive magnetic coupling design. Maintenance personnel can manually toggle the rotary knobs and magnetic selector switches to calibrate millimetric limit switches and stroke parameters straight through a high-contrast digital LCD interface without opening the electronic cover casing, keeping internal cleanrooms 100% insulated from atmospheric moisture and dust on-site. The motor housing additionally contains integrated solid-state thermal sensors that automatically break the main power rails to save the cuộn dây the exact millisecond mechanical jams induce internal overheating faults.

ELECTRICAL DATA & TRANSISTOR PERFORMANCE INDEX
- Equipment Manufacturer: SIPOS Aktorik (A member of the global AUMA Group - Germany)
- Product Family Generation: SIPOS 5 Flash Series Array
- Base Actuator Core Model: 2SA5021-5CE00-4BB3
- Extended Factory Modifier Code: -Z (Houses combined option blocks B58 and C50 concurrently)
- Drive System Classification: Variable Speed Multi-turn Electric Actuator
- Rated Operating Supply Input: 400 V AC Industrial Grid Power (3-Phase / 3-pha configuration)
- Power Line Frequency: 50 Hz
- Motor Variable Control Profile: Integrated technical digital Frequency Converter block (Built-in Frequency Converter), enabling dynamic linear speed throttling.
- Overload Thermal Protection: Embedded internal winding thermistor sensors triggering instant power rail isolation upon mechanical over-temperature events.

CUSTOM INDUSTRIAL NETWORK & ENCLOSURE CODES (-Z MODIFIERS)
- Digital Expansion Option B58: Advanced industrial fieldbus communication module card (Embedded Profibus DP / Modbus protocol interface) paired with multi-channel digital output state feedback logic relays.
- Environmental Protection Option C50: Multi-layer hard-anodized Epoxy protective shell coating formulated for marine/coastal chemical resistance (Offshore heavy coating) and upgraded IP68 structural seals for long-term liquid immersion proofing.

MECHANICAL PROPERTIES & VALVE FLANGE COUPLING
- Valve Mechanical Attachment Interface: Universal international standard ISO 5210 flange geometry (Specified for Multi-turn drive loads)
- Hydrodynamic Control Matrix: Full variable speed profiling enabling automated Soft Start / Soft Stop execution to eradicate fluid water hammer shockwaves.
- Emergency Manual Override: Integrated mechanical handwheel assembly fitted with an automated electrical interlock clutch safety loop to protect field technicians.
- Paired Valve Compatibility: Direct drop-in mounting for large-bore linear Gate Valves, high-pressure Globe Valves, or quarter-turn Butterfly/Ball units via auxiliary gear boxes.

LOCAL INTERFACE & VISUAL DIAGNOSTICS
- Field Operator Control Terminal: Built-in localized Local Control Station mounted flush onto the metallic actuator casing.
- Calibration Setup Metrology: Non-intrusive structural engineering blueprint (Tactile magnetic selector switches bypassing shell penetration), allowing limit switch calibration without opening electronic boxes.
- Visual Feedback Board: High-contrast digital liquid crystal display (LCD) tracking real-time valve opening percentage (%), angular stroke vectors, structural torque limits, and automated system error log codes.

ENVIRONMENTAL RATINGS & COMPLIANCE STAMPS
- Base Ingress Protection Rating: IP67 Standard insulation (Upgraded straight to heavy-duty submersible IP68 via the factory C50 mechanical package modifier)
- Production Facility Origin: European Union EU (Germany manufacturing plants) / China (China Origin facilities) - Fully aligned under standardized global Siemens/SIPOS engineering regulations.
- Master System Deployment Profiles: Core control actuator node managing high-pressure steam lines in utility boiler plants, Chilled Water isolation grids, high-volume raw water intake locks, and long-range petrochemical pipeline distribution hubs.
