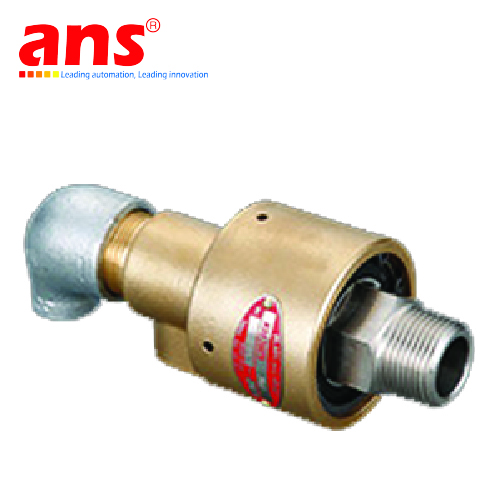

Rotary Joint RXE 2120 Showa Giken Vietnam

Key Features

• Floating seal ring ensures excellent contact with the rotor sealing surface, delivering consistent and reliable sealing performance.

• Low torque design eliminates the need for anti-rotation mechanisms in most applications (excluding the RXK model).

• Stainless steel specifications are available for RXE and RXH series. All metal components in these models are made from corrosion-resistant stainless steel.

• Optional compatibility with dry air is also available upon request.

Technical Specifications

• Media: Water / Oil

• Maximum Operating Pressure:

  • Size 8A to 25A: 2.25 MPa (326 psi)

  • Size 32A to 40A: 1.67 MPa (242 psi)

  • Size 50A to 80A: 1.18 MPa (171 psi)

• Maximum Temperature: 100°C (212°F)

• Maximum Rotational Speed:

  • Size 8A to 25A: 3500 rpm

  • Size 32A to 40A: 2000 rpm

  • Size 50A to 80A: 750 rpm
