0911472255Radial piston pump R 8,3-8,3-8,3-8,3 HAWE Hydraulik Vietnam
.jpg)
Product description

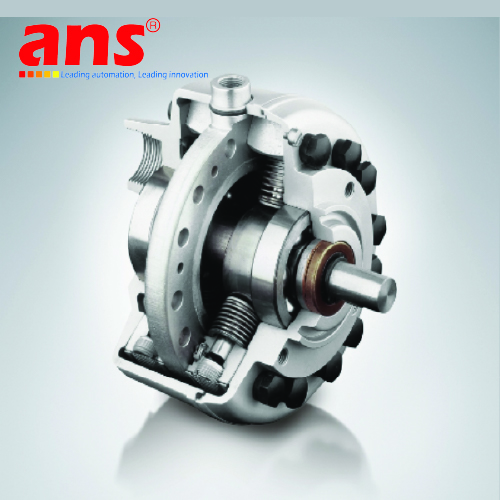

The radial piston pump type R consists of valve-controlled pump elements arranged in star form around an eccentric. For large flow rates, up to 42 pump elements can be set up in 6 stars stacked one above the other. The pump elements’ output volume is merged to feed one or more pressure outlets.
The radial piston pump type R, RG and RZ has a closed pump housing. Therefore, besides use as a motor pump outside an oil tank, installation in the container of a hydraulic power pack is also possible. The radial piston pump is available with several pressure outlets which enable the same or several different volumetric flows.
Features and advantages
- Good function even at low viscosity
- High level of efficiency
- Compact dimensions
- Fine flow rate gradation
- Multiple pressure connections possible
Intended applications
- Any high-pressure application is basically possible.
- Areas in which a constant flow rate is necessary.
- Press construction
- Fixture design
- Testing and laboratory equipment
- Lubrication systems
- Agricultural engineering
