PIERCING DEVICE FOR CO2 TESTING 6001 Zahm& Nagel Vietnam

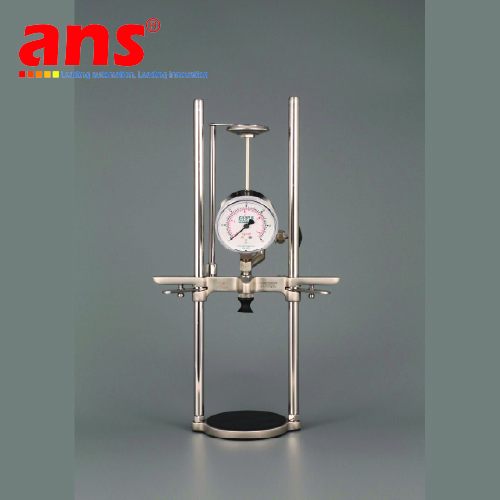

CO² Testers for Cans & Bottles The Zahm Model D.T. Piercing Device is used to test carbonated beverages for volumes of CO² gas in glass/PET bottles and cans. This instrument uses a dual scale pressure gauge (0-60 psi & 0-4.2kg/cm2) and an adjustable 2″ dial thermometer (25/125ºF & -5/55ºC). It is available in one and three liter sizes. The Series 6000 Piercing Device will provide rapid and accurate determination of gas volumes in alcoholic and non-alcoholic beverages when used with the two pressure/temperature charts furnished with the instrument.

Product Description

Caution: EYE PROTECTION MUST BE WORN WHILE OPERATING THIS INSTRUMENT

The instrument is ready for product testing as received from the factory but several checks should be made in order to assure that none of the fittings leak when testing is being performed.

Apply a small amount of “O” ring lubricant to the dial thermometer stem (6003) and work it up and down to lubricate the “O” ring (6008). “O” ring lubricant may be purchased from Zahm & Nagel.
Pressurize the instrument and apply a soapy water solution to all fittings. The formation of bubbles will show any leakage and the condition can then be corrected. The instrument may also be pressurized and submersed in an aquarium filled with water and bubbles observed in this manner.
