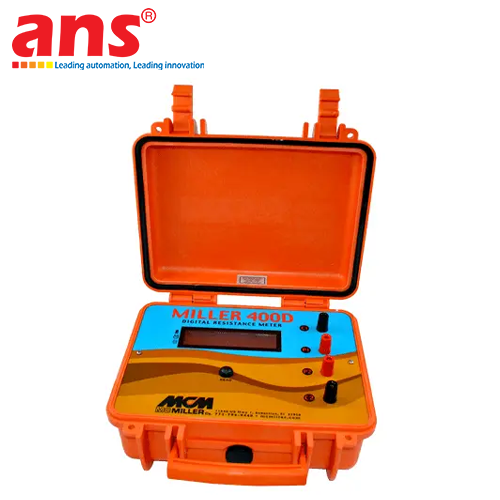

The M.C. Miller Model 400D Digital Resistance Meter (Catalog Number: 44550), engineered and manufactured by M.C. Miller Co., Inc. in Florida, USA, is the industry-benchmark digital instrument for soil resistivity surveys, grounding system testing, and laboratory soil corrosivity evaluation. It serves as the advanced direct digital evolution of the legendary analog Miller 400A.

International Engineering & Industry Standards Compliance:
- ASTM G57: Standard Test Method for Field Measurement of Soil Resistivity Using the Wenner Four-Electrode Method.
- AASHTO T 288: Standard Method of Test for Determining Minimum Laboratory Soil Resistivity.

Product Codes & Complete Accessory Ecosystem Breakdown:
1. Miller 400D (Code 44550): Microprocessor-based digital 4-pin resistance meter featuring auto-ranging from 0.01 Ω to 10 MΩ, high-contrast backlit LCD display, internal rechargeable NiMH battery pack, and an IP67 weatherproof field enclosure.
2. Option 2.1 - 6" Diameter Soil Cylinder (Code 37020): Heavy-duty 6-inch diameter test cylinder designed for determining the volume resistivity of compacted soil specimens per DOT and geotechnical testing standards.
3. Option 2.2 - Small Soil Box (Code 37006): Standard clear acrylic soil container with brass/stainless current plates and potential pins, calibrated to a 1.0 cm multiplying factor for rapid laboratory or field sample resistivity evaluation.
4. Option 2.3 - 4-Pin Soil Test Leads for Test Reel (Code 44698): Dedicated 4-conductor color-coded lead set terminated with heavy-duty banana jacks and alligator clamps to connect the 400D meter to external test reels.
5. Option 2.4 - Large Soil Box (Code 37008): Heavy-duty soil container engineered for testing coarse, rocky, or non-uniform gravelly soils.
6. Option 2.5 - Resistor Kit (Code 15630): High-precision reference resistor set (tolerance ±0.1%) designed for field calibration verification and functional testing of the 400D meter.

Key Engineering Features & Operational Advantages:
- Wide-Dynamic-Range Auto-Ranging (0.01 Ω to 10 MΩ): Completely eliminates manual multiplier decade dials. The meter automatically selects the ideal measurement scale and presents direct numeric ohmic readings on a large LCD screen, eliminating analog scale interpretation errors.
- Synchronized AC Current Inversion: Injects a low-frequency synchronized AC test current (~97 Hz) that filters out stray 50/60 Hz power-line interference, telluric earth currents, and DC electrode polarization voltages.
- Multi-Method Versatility (4-Pin, 3-Pin, 2-Pin):
  + Wenner 4-Pin Field Method: Stratified soil resistivity profiling across depths for ground bed and cathodic protection anode sizing.
  + 3-Pin Fall-of-Potential Method: Direct verification of existing substation ground grids and commercial earthing rods.
  + 2-Pin Method with Soil Box: Immediate laboratory testing of mud slurries, granular samples, and water samples.
- IP67 Weatherproof Ruggedized Housing: Enclosed inside an ultra-tough structural resin transport case sealed to IP67 ingress protection against heavy downpours, mud immersion, and harsh desert environments.

Target Industrial Sectors & Applications:
- Oil, Gas & Petrochemical Refining: Soil corrosivity surveys along underground pipeline rights-of-way; impressed current cathodic protection (ICCP) and sacrificial galvanic anode design.
- Power Generation & Renewable Energy: Soil resistivity testing for high-voltage 110kV/220kV/500kV substation earthing grids, wind turbine tower foundations, and solar farms.
- Civil Engineering & Transportation: Evaluating corrosion potential on bridge pilings, reinforced concrete foundations, and sheet piling per AASHTO standards.
- Water & Wastewater Infrastructure: Soil survey along ductile iron and steel municipal transmission mains.
- Geotechnical & Environmental Testing Laboratories: Routine soil corrosivity testing and liquid electrolyte analysis.

[1] SPECIFICATIONS FOR MILLER 400D DIGITAL RESISTANCE METER (CODE 44550):
• Manufacturer: M.C. Miller Co., Inc.
• Country of Origin: 100% USA (Made in USA)
• Part / Order Code: 44550
• Model Name: Miller 400D
• Measurement Range: 0.01 Ω to 10 MΩ (Continuous Auto-ranging)
• Measuring Accuracy:
  - 0.01 Ω to 1 MΩ range: ±1% of reading ± 1 digit
  - 1 MΩ to 10 MΩ range: ±5% of reading
• Maximum Resolution: 0.01 Ω
• Output Test Current Frequency: Synchronized low-frequency AC current (~97 Hz) rejecting 50/60 Hz noise
• Maximum Open-Circuit Voltage: ≤ 40 V RMS (operator safety compliant)
• Testing Modes Supported: 4-Pin (Wenner), 3-Pin (Fall-of-Potential), 2-Pin (Soil Box)
• Display: 4.5-digit alphanumeric high-contrast LCD with backlight
• Power Source: Internal rechargeable NiMH battery pack (extended continuous field runtime)
• Charging Interface: 100 - 240 VAC wall charger and 12 VDC vehicle power adapter
• Terminal Interface: 4 heavy-duty color-coded 4mm safety banana jacks (C1, P1, P2, C2)
• Case Construction: Heavy-duty structural resin, IP67 weatherproof and dustproof (lid closed)
• Operating Ambient Temperature: -10°C to +50°C (14°F to 122°F)
• Case Dimensions: Approx. 305 x 254 x 152 mm (12” x 10” x 6”)
• Total Instrument Weight: Approx. 3.8 kg (8.4 lbs).

[2] ACCESSORY ECOSYSTEM TECHNICAL SPECIFICATIONS:
• Option 2.1 - 6" Diameter Soil Cylinder (Code 37020):
  - Inner Diameter: 6.0 inches (~152.4 mm)
  - Standard Compliance: AASHTO T 288 volumetric soil specimen testing
  - Housing: High-impact acrylic with heavy-duty conducting contact plates
• Option 2.2 - Small Soil Box (Code 37006):
  - Interior Dimensions: Sized per ASTM G57 and AASHTO T 288 specifications (~270 mL capacity)
  - Geometric Box Factor: 1.0 cm multiplier factor (Resistivity in Ω-cm = Measured Resistance in Ω x 1.0)
  - Metallurgy: Machined clear acrylic body, plated brass current plates, stainless steel potential pins
• Option 2.3 - 4-Pin Soil Test Leads for Test Reel (Code 44698):
  - Configuration: 4-conductor color-coded lead set (Black, Red, Yellow, Green)
  - Termination: Molded 4mm banana plugs to heavy-duty insulated alligator clips
• Option 2.4 - Large Soil Box (Code 37008):
  - Application: Specialized for coarse soils, crushed stone, and oversized aggregate specimens
  - Metallurgy: Transparent heavy-gauge acrylic with rugged contact plates
• Option 2.5 - Resistor Kit (Code 15630):
  - Componentry: Precision reference calibration resistors (±0.1% tolerance)
  - Function: In-field operational verification and NIST-traceable calibration check for Miller 400D.
