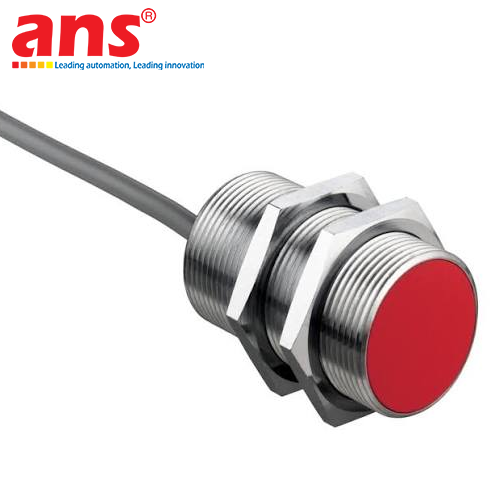

The Leuze IS 230MM/4NO-22E (Part Number: 50109720) is a specialized extended-range non-contact metal detection switch belonging to Leuze electronic's standardized Series 230 (Germany). Built with a heavy-duty M30 cylindrical chromed brass body and offering an extraordinary flush scanning distance of 22 mm, this sensor delivers unmatched mechanical protection, extreme sensing clearance, and long-term durability across heavy industrial machine automation processes.

KEY PRODUCT FEATURES AND OPERATIONAL ADVANTAGES:
1. Exceptional 22 mm Extended Operating Range – Flush / Embedded Installation (-22E):
Delivers a massive nominal sensing range Sn of 22 mm (assured operating range Sa: 0 to 17.8 mm) while maintaining full flush-mount compatibility with metallic surrounding structures. This flush installation protects the active sensing face against direct physical impacts from vibrating or swaying workpieces while saving critical machinery footprint.
2. High-Frequency Inductive Eddy Current Principle – Zero Mechanical Wear:
Detects metallic targets through electromagnetic field damping when conductive metals (ferrous or non-ferrous) enter the active sensing zone. Its 100% non-contact operation prevents mechanical wear and remains completely impervious to cutting fluids, lubricants, dust, or metal shavings.
3. PNP Normally Open (NO) Transistor Output:
Equipped with a solid-state PNP NO output capable of handling up to 200 mA switching current, ensuring seamless hardware integration with modern PLC control systems (Siemens, Mitsubishi, Omron, Schneider, Delta, etc.).
4. Chromed Brass Shell with PBT Sensing Face:
The precision-machined M30x1.5 mm threaded barrel is crafted from rugged chromed brass paired with a wear- and chemical-resistant Polybutylene (PBT) sensing cap. Rated IP67 for water and dust ingress protection, it operates reliably across -25 °C to +70 °C with an outstanding 460-year MTTF rating.
5. Flexible 2m PVC Cable Connection:
Equipped with a 2,000 mm (2 m) oil-resistant 3-wire PVC cable, ensuring dependable electrical signal transmission and high mechanical flexibility inside machinery drag chains.
6. Comprehensive Protective Electronics & Yellow Status LED:
Equipped with built-in output short-circuit protection, reverse power polarity protection, and inductive transient suppression. A bright yellow status LED at the rear delivers clear visual confirmation of switching output states during alignment and diagnostics.

TYPICAL INDUSTRIAL APPLICATIONS:
• Heavy-Duty CNC Machine Tools & Machining Centers: Slide table travel limit sensing, large fixture positioning, and hydraulic workpiece clamping confirmation.
• Hydraulic Stamping Presses & Metal Roll Forming: Top/bottom dead center detection and sheet metal feed indexing with extended clearance.
• Automotive Manufacturing & Robotic Welding: Welding fixture clamping verification and mold position sensing on automated robotic lines.
• Conveyor Systems & Heavy Logistics: Heavy cart end-of-travel limit detection and steel pallet positioning in automated storage racks.

• Manufacturer: Leuze electronic
• Part Number / Model: IS 230MM/4NO-22E
• Order Number (Part no.): 50109720
• Series: Series 230 (Standard Cylindrical M30)
• Brand Origin: Germany
• Sensor Type: Inductive proximity switch
• Housing Design: Cylindrical threaded
• Dimensions (Diameter x Length): Ø 30 mm x 62 mm
• Thread Size: M30 x 1.5 mm
• Installation Type: Embedded / Flush mounting
• Nominal Operating Range Limit (Sn): 22 mm
• Assured Operating Range (Sa): 0 ... 17.8 mm
• Standard Target Plate: 66 x 66 mm², Fe360 steel
• Material Correction Factors:
  - Fe360 Steel: 1.0
  - Stainless Steel: 0.66
  - Brass: 0.45
  - Aluminum: 0.4
  - Copper: 0.35
• Switching Hysteresis: 10 %
• Repeatability: Max. 5 % (at Ta = 23 °C ± 5 °C)
• Temperature Drift: Max. 10 % (over entire operating span)
• Max. Switching Frequency: 200 Hz
• Readiness Delay: 200 ms
• Supply Voltage (UB): 10 ... 30 V DC (Residual ripple 0 ... 20%)
• Open-Circuit Current: 0 ... 10 mA
• Digital Switching Outputs: 1 output
• Switching Element: Transistor PNP
• Switching Principle: NO (Normally Open)
• Max. Switching Current: 200 mA
• Voltage Drop: ≤ 2 V DC
• Residual Current: Max. 0.1 mA
• Protective Circuitry: Polarity reversal protection, short-circuit protection, inductive kickback protection
• Status Indicator: 1 yellow LED indicating switching output state
• Connection Type: 2,000 mm (2 m) PVC gray cable
• Number of Conductors: 3-wire (conductor cross section 0.34 mm²)
• Housing Material: Chromed brass
• Sensing Face Material: Polybutylene terephthalate (PBT)
• Housing Colors: Silver / Red RAL 3000
• Net Weight: 215 g
• Degree of Protection: IP 67 (Dust tight and temporary immersion water protection)
• Protection Class: Class II
• Reliability (MTTF): 460 years
• Ambient Operating Temperature: -25 °C ... +70 °C
• Storage Temperature: -25 °C ... +70 °C
• EMC Standards: IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4
• Product Standards & Approvals: IEC 60947-5-2, cULus Listed
