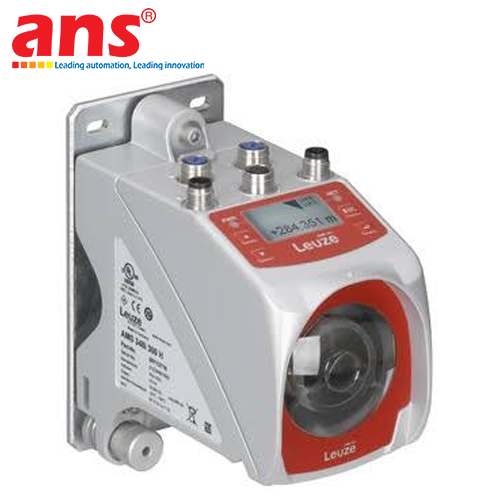

The Leuze AMS 348i 200 Optical Distance Sensor (Part Number: 50113711) is an advanced laser measurement and positioning instrument from the flagship AMS 300i Series engineered and manufactured by Leuze electronic (Germany). Designed specifically for dynamic absolute positioning tasks and millimeter-accurate distance measurement over an expansive envelope from 200 mm to 200,000 mm (0.2 to 200 meters), this high-performance sensor meets the highest reliability benchmarks of modern intralogistics, automated warehousing, and intelligent manufacturing plants.

At the core of the AMS 348i 200 is Leuze's proven optical phase-comparison measurement technology utilizing a high-visibility red laser transmitter (655 nm wavelength, Laser Class 2 eye-safe compliance). Empowered by advanced internal digital signal processing algorithms, the sensor achieves an impressive absolute measurement accuracy of ±3 mm and a reproducibility (3 sigma) of 2.1 mm across the full 200-meter operating span. In addition, the instrument delivers a rapid measurement update rate of 1.7 milliseconds and accommodates target traversal speeds of up to 10 m/s (36 km/h). This enables host PLCs to execute closed-loop motion control in real-time, eliminating overshoot and oscillation when automated stacker cranes accelerate and brake during high-throughput warehousing cycles.

A premier technical hallmark of the AMS 348i model is its integrated industrial PROFINET RT communication interface (Conformance Class B) featuring dual-port M12 D-coded connectors (BUS IN and BUS OUT) with embedded line-switch functionality. This allows seamless daisy-chain or ring network topology integration directly onto factory automation fieldbuses without requiring external network switches, drastically cutting hardware deployment costs and streamlining cable runs. Device configuration, diagnostics, and parameter assignment are effortlessly executed via standardized GSDML device description files in engineering environments such as Siemens TIA Portal, or locally via the integrated backlit LC Display and tactile membrane keypad.

The instrument is encapsulated in a rugged, monolithic diecast zinc and aluminum alloy enclosure weighing 2.45 kg, fitted with a scratch-resistant optical glass lens aperture, and sealed to an IP65 ingress protection rating. This robust mechanical packaging ensures complete immunity against industrial shock, high-vibration gantry crane travel, and airborne industrial particulate contamination, delivering an exceptional Mean Time To Failure (MTTF) of 31 years for uninterrupted 24/7 industrial service.

• Manufacturer: Leuze electronic GmbH + Co. KG
• Country of Origin: Germany (100% Germany Origin)
• Part Number / Order Code: 50113711
• Full Model Identification: AMS 348i 200
• Product Series: Optical distance sensors AMS 300i Series
• Measurement Operating Range: 200 mm to 200,000 mm (0.2 m to 200 m)
• Measurement Resolution: Configurable from 0.001 mm to 10 mm
• Absolute Measurement Accuracy: ±3 mm
• Reproducibility (3 Sigma): 2.1 mm
• Measurement Value Output Rate: 1.7 ms
• Calculation Processing Time: 8 ms
• Maximum Permissible Traverse Rate: 10 m/s (36 km/h)
• Optical Transmitter: Visible red semiconductor laser, 655 nm wavelength
• Laser Safety Standard: Laser Class 2 (per IEC/EN 60825-1:2014)
• Laser Spot Geometry: Round, Ø150 mm beam spot diameter at 200 m distance
• Industrial Fieldbus Interface: PROFINET RT (Conformance Class B, Real-Time protocol)
• Network Transmission Speed: 100 Mbit/s with integrated 2-port switch functionality
• Operating Voltage Range: 18 to 30 V DC
• Electrical Connections:
  - Connector 1: BUS IN (M12 metal connector, 4-pin, D-coded)
  - Connector 2: BUS OUT (M12 metal connector, female, 4-pin, D-coded)
  - Connector 3: Power supply & Switching I/O (M12 male connector, 5-pin, A-coded)
  - Connector 4: Service Configuration Interface (M12 female connector, 5-pin, A-coded)
• Visual User Interface: Monochromatic LC Display and 4 status indicator LEDs
• Local Control Interface: Integrated tactile membrane keyboard
• Enclosure Construction: Rugged diecast zinc/aluminum metal housing
• Lens Window Material: High-grade optical glass
• Dimensions (W x H x L): 84 mm x 166.5 mm x 159 mm
• Net Weight: 2,450 g (2.45 kg)
• Ingress Protection Rating: IP65 (per IEC/EN 60529)
• Electrical Protection Class: Class III
• Operating Ambient Temperature: -5°C to +50°C
• Compliance & Standards: c UL US, CE certified
