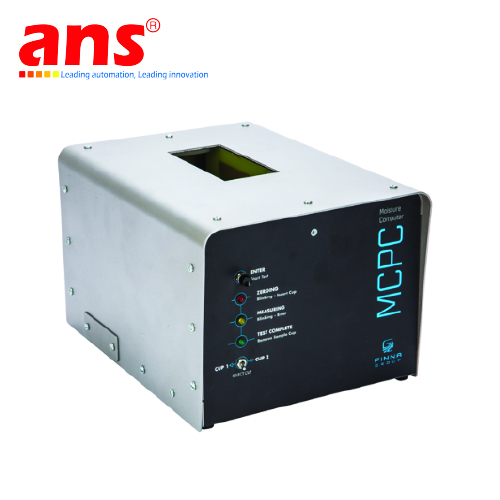

Lab Moisture Analyzer AM-MCPC-RS-2 Finna Sensors Vietnam

MCPC Moisture Analyzer – Fast & Accurate Laboratory or Production Measurement

The MCPC Moisture Analyzer connects to a PC via RS-232 serial port and is ideal for measuring the moisture content of grains, seeds, powders, pellets, flakes, or granules. Supplied as a complete package including:

• MCPC-RS Test Chamber

• Windows-compatible software

• Two sample cups

• Dial thermometer

• Standard reference block

• 3-meter RS-232 cable

• USB-to-RS232 adapter

• User manual

• 115VAC/60Hz wall-mounted power supply

Note: Computer not included. Minimum PC requirements: IBM-compatible Pentium or higher, Windows 7 or later, at least 4.5 MB free hard drive space, and a USB port.
Voltage options: 115 VAC for North & South America and Japan; 220 VAC for Australia, Europe, and most Asian countries.

Key Features

• Non-destructive moisture measurement for powders, chips, grains, flakes, pellets, food products, whole nuts, meat products, chemicals, aggregates, and more.

• Certified for almonds by the State of California.

• Simple two-point calibration using built-in reference curves; automatically calculates and stores gain and offset values.

• Multi-point calibration for enhanced accuracy – up to 7 known-moisture samples to create a segmented calibration curve over a wide range.

• Built-in weighing capability for samples up to 200 g.

• Ultra-fast testing speed: 5 seconds or less.

• Stores and recalls up to 99 different calibration curves.

• Intuitive menu-driven operation; built-in Help menu with concise instructions.

• Direct data export to CSV or Excel XLS format.

Operating Principle

The MCPC Moisture Computer uses weight-compensated capacitance measurement at radio frequencies (RF) to determine moisture content in five seconds or less.
RF waves fully penetrate non-conductive materials, ensuring accurate measurement of the entire sample, with no destruction and no heating of the material.
