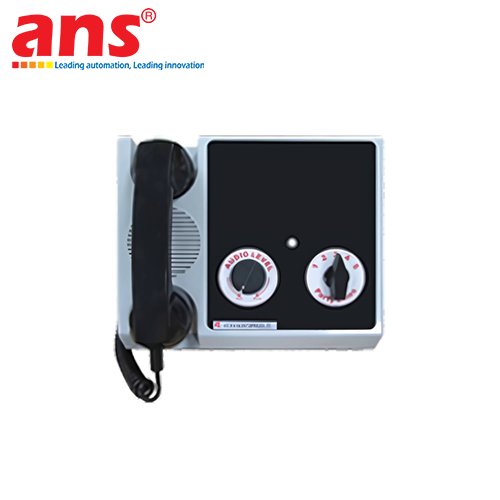

INTERKING K35AD0 INDUSTRIAL DESKTOP HANDSET INTERCOM STATION

DEEP PRODUCT OVERVIEW & CONTROL ROOM ARCHITECTURE
The Interking K35AD0 is a high-tech industrial desktop handset intercom station (Industrial Desktop Handset Station) engineered and manufactured 100% in Taiwan by the renowned industrial telecommunications pioneer Interking. This advanced device functions as the core terminal component driving heavy-duty Page/Party network loops (Public Address Paging / Multi-channel Private Party Intercom systems). It is explicitly optimized for harsh industrial environments such as cement production plants, steel smelting complexes, petrochemical refineries, thermal power generating facilities, and massive deep-tier logistics sorting centers. Sporting a specialized ergonomic inclined profile, the K35AD0 is tailor-made for flat-flush installation on operator work desks or master central control consoles. The seamless integration of its high-output power amplifier module, rugged structural hardware, and fine frequency filtering conditioning transforms this intercom station into an elite operational tool, securing uncompromised voice data transmission under severe high-amplitude mechanical ambient noise profiles.

HIGH-SELECTIVITY 5-CHANNEL PRIVATE PARTY LINE TOPOLOGY
The core technical advantage and primary operational flexibility of the Interking K35AD0 lies in its pre-configured 5 independent private party line channels (5 Party Lines) working alongside 1 dedicated public paging channel (Paging Line). On busy factory floors, multiple operational units routinely require simultaneous communications.
- The instant an operator lifts the heavy-duty handset and rotates the manual selector knob to any channel from Line 1 to Line 5, a completely isolated communication track locks onto the targeted terminal station.
- This localized architecture empowers engineers and supervisors to coordinate highly secure, digital-grade clear voice exchanges that strictly bypass, isolate, and eliminate cross-talk interference or line overlap, ensuring other independent conversations continue smoothly across the remaining network rails.

INTEGRATED AMT002 SPEAKER AMPLIFIER MODULE FOR PLANT-WIDE BROADCASTING
The acoustic signal processing core of the K35AD0 terminal relies on the built-in, high-output AMT002 Speaker Amplifier Module hardwired straight inside the enclosure. This power block holds the technical responsibility of driving and supplying audio currents directly to an adjacent high-decibel industrial horn speaker.
- When an operator at a remote node executes a plant-wide broadcast by holding down the handset push-to-talk button, the standard voice signal streams into the K35AD0's AMT002 amplifier block.
- The internal circuit instantly drives a high-gain amplification loop, forcing crisp, clear public address announcements out through the horn speaker with powerful volume. This guarantees that supervisors and field crew capture critical safety directives immediately, even if they are standing several yards away from the desk terminal without holding the physical handset in high-noise manufacturing wings.

RUGGED MECHANICAL STEEL+ABS BUILD & SEVERE IP54 WEATHER HOUSING
- Hybrid Structural Component Materials: Built to absorb high-frequency physical impacts and survive rough continuous field operation across shifts, the upper control interface panel is machined from premium heavy-duty stamped Steel plate (Steel panel). This structural front is resilient against blunt impact and scratch wear, while the deep lower protective enclosure base is molded from advanced high-impact ABS engineering polymer, offering flame-retardant properties, total electrical safety insulation, and immunity to mild chemical erosion. The rear casing features factory-molded cable entry ports including two large Ø50 mm openings and one Ø28 mm opening, enabling neat, watertight snaking of the 220V grid power lines, main system bus trunks, and external speaker cords.
- Universal IP54 International Ingress Protection Seal: Certified to provide high-level protection against airborne fine particulate dust deposits and full shield integrity against liquid splashes spraying from any geometric angle. Powered straight via standard 220V AC grid lines and protected by its IP54 casing, the Interking K35AD0 acts as the ultimate reliable choice for sheltered, high-volume operations such as Central Control Rooms (CCR), workshop general offices, terminal guard houses, and dispatch cells where standard office telephones break down prematurely due to relentless industrial dust.

NOMINAL DATA & INFRASTRUCTURE CLASSIFICATION
- Equipment Manufacturer: Interking (Taiwan - 100% Genuine Origin)
- Device Identification Model: K35AD0
- Equipment Classification: Industrial Desktop Handset Intercom and Public Address Station
- Networking Operational Loop: Industrial multi-drop Page/Party communication bus topology
- Channel Scaling Profile: 5 Independent private communication channels (5 Party Lines) + 1 Global public address channel (1 Paging Line)
- Channel Control Selector: Robust manual rotational switch mapped onto the steel faceplate for swift Line 1 to Line 5 digital selection.

ELECTRICAL SPECIFICATIONS & AMPLIFICATION POWER
- Supply Operating Voltage: 220 VAC network input grid power
- Power Input Frequency: 50/60 Hz industrial regulation rails
- Termination Method: Direct connection to AC grid line infrastructure without requiring cumbersome external power adapters
- Integrated Signal Audio Amplifier: Built-in premium AMT002 Speaker Amplifier board module
- Acoustic Driving Output: Amplifies incoming voice waveforms to supply audio current directly to auxiliary external high-output Horn Speakers.

MECHANICAL PROPERTIES & MATERIAL COMPOSITION
- Enclosure Structure Style: Inclined ergonomic wedge footprint (Desktop console mount form factor)
- Faceplate Control Material: Heavy-duty industrial-grade stamped Steel Panel for superior physical impact protection
- Lower Base Housing Substrate: Fire-retardant, high-impact ABS engineering plastic polymer (Class II electrical insulation safety)
- Cable Entry Knockout Provisions (Cable Entry):
  + 2 x Pre-drilled cable entries with a physical diameter of Ø50 mm (Allocated for main system bus and network loop wiring)
  + 1 x Pre-drilled cable entry with a physical diameter of Ø28 mm (Allocated for 220V AC grid power and external speaker output lines)
- Handset Assembly: Heavy molded acoustic handset cluster fitted with an integrated tactile Push-to-Talk (PTT) cradle button and a high-tensile flexible coil cord.

ENVIRONMENTAL SPECTRUM & FIELD DEPLOYMENT DIRECTIVES
- Ingress Protection Rating: IP54 (High-level fine dust exclusion and full protection against liquid splashes coming from any direction)
- Embedded Safety Circuits: Integrated internal power rail fuse block, active band-pass noise filtration circuit to reject ambient industrial electromagnetic cross-talk.
- Primary Installation Environments: Sheltered industrial operational hubs, central facility master control desks (CCR room consoles), security checkpoints, plant entry gates, and heavy manufacturing shop floor supervisor desks burdened by relentless airborne dust.
- Alignment Standards Guidelines: Fully compliant and verified under international heavy industrial communication benchmarks certified by Interking.
