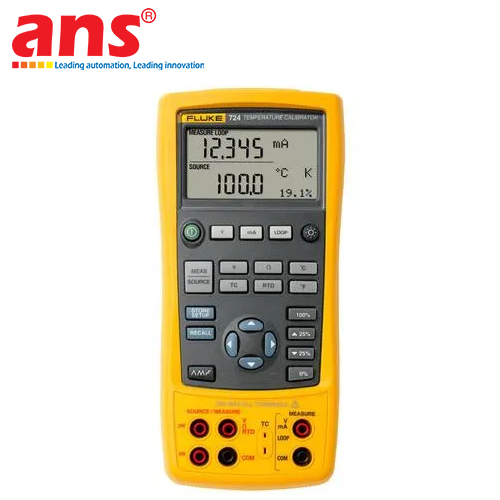

The Fluke 724 Temperature Calibrator is a professional field-ready instrument engineered by Fluke Corporation – the worldwide benchmark in electronic measurement and process calibration tools. Designed as an all-in-one testing solution, the Fluke 724 empowers maintenance technicians, instrumentation engineers, and QA specialists to inspect, verify, and calibrate virtually all temperature instruments and transmitters throughout an entire industrial plant using a single, streamlined tool.

A standout capability of the Fluke 724 is its versatile measuring and sourcing architecture. The unit supports 12 thermocouple types (J, K, T, E, R, S, B, L, U, N, XK, BP) and 7 resistance temperature detector (RTD) types (Pt100-385, Pt100-392, Pt100-393, Pt100-JIS, Pt200, Pt500, Pt1000, and Ni120), in addition to measuring and sourcing DC volts (from mV up to 30V) and resistance (up to 3200 Ω). The instrument even handles high-speed pulsed RTD circuits. Its backlit dual-line display allows technicians to source a simulated temperature signal on the lower display while simultaneously monitoring the resulting loop current (mA) or voltage on the upper display, eliminating the need to toggle screens during loop verification.

Additionally, the Fluke 724 incorporates an integrated 24V DC loop power supply, allowing users to power field temperature transmitters directly while simultaneously reading their mA output. It features practical automated diagnostic functions, including 25% and 100% manual stepping for fast linearity tests, as well as automatic stepping and auto-ramping for remote verification. The intuitive "no-menus" interface provides dedicated pushbuttons for all primary functions, drastically reducing commissioning and testing times. Encased in Fluke’s signature rugged, impact-resistant holster and powered by 4 standard AA alkaline batteries providing up to 25 hours of operation, the Fluke 724 delivers lab-grade reliability under the most demanding field conditions.

• Manufacturer: Fluke Corporation
• Origin: EU / China (Fluke Global Quality Standard)
• Model: Fluke 724
• Product Series: Professional Handheld Temperature Calibrator
• Display: Dual-line high-contrast LCD with backlight for low-light environments
• Thermocouple Measurement and Sourcing:
  - 12 Types Supported: J, K, T, E, R, S, B, L, U, N, XK, BP
  - Measurement Accuracy: Types J, K, T, E, L, U, N: 0.7 °C to 0.9 °C; Types R, S, B: 1.4 °C to 1.8 °C
  - Resolution: 0.1 °C / 0.1 °F (Types R, S, B: 1 °C / 1 °F)
• RTD Measurement and Sourcing:
  - 7 Types Supported: Ni120 (672), Pt100 (385), Pt100 (393), Pt100 (JIS), Pt200 (385), Pt500 (385), Pt1000 (385)
  - Accuracy: 0.2 °C to 0.33 °C (4-wire measurement)
  - Resolution: 0.1 °C / 0.1 °F
• DC Voltage Measurement: 0 to 30.000 V (upper display), 0 to 20.000 V (lower display), accuracy 0.02% + 2 counts
• DC Voltage Sourcing: -10.00 mV to 75.00 mV (accuracy 0.025% + 1 count); 0 to 10.000 V (accuracy 0.02% + 2 counts)
• DC Current Measurement: 0 to 24.000 mA, accuracy 0.02% + 2 counts
• Loop Power Supply: 24V DC (10% accuracy, maximum current 22 mA with short-circuit protection)
• Resistance Measurement and Sourcing:
  - Measure Range: 0.0 Ω to 3200 Ω (resolution 0.1 Ω, accuracy 0.1 Ω to 1.5 Ω)
  - Source Range: 15.0 Ω to 3200 Ω
• Stepping & Ramping Functions: 25% and 100% step functions; Slow ramp, Fast ramp, and 25% step-ramp
• Power Supply: 4 × AA alkaline batteries (approx. 25 hours typical operating battery life)
• Dimensions (W × L × D): 96 × 200 × 47 mm (3.8 × 7.9 × 1.9 inches)
• Weight: Approx. 650 g (23 oz) with batteries
• Operating Temperature: -10 °C to +55 °C (14 °F to 131 °F)
• Safety and Shock Standards: CSA C22.2 No. 1010.1:1992, EMC EN50082-1, 1-meter drop tested
• Standard Included Accessories: TL75 test leads, AC70A test clips, one pair of stackable test leads, 4 AA batteries, user manuals, and NIST-traceable calibration certificate with data
• Applicable Industries: Thermal power generation and gas turbine facilities, oil and gas refining, chemical manufacturing, steel and metallurgical works, GMP pharmaceutical production, food and beverage processing (F&B), cement manufacturing, and metrological calibration testing laboratories.
