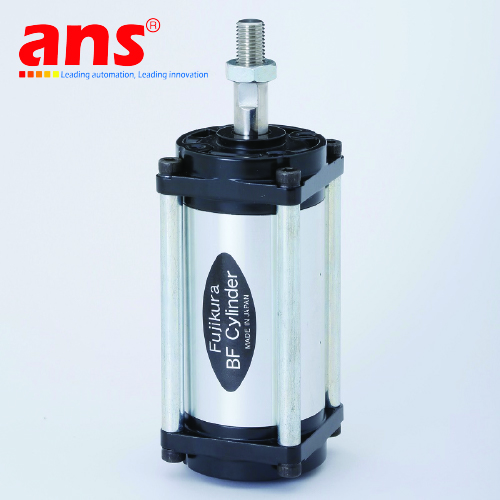

Cylinder FCS-63-78-S FUJIKURA Vietnam

Features

• FC Series are standard type of BF Cylinders. They are designated in a variety of sizes from 10 to 200φ(0.39～7.87in.).
• Each size has both a single action type and a double action type.
• A variety of mounts, that is, L, Flange, Trunnion, Pivot are available.

(Available for cylinders of on/over 25mm(0.98in.) diameter)

Applications

BF Cylinders find its best applications in such cases where air leakage is not allowed and/or sensitive response to minute pressure variations are required.

• High sensitivity actuator for automatic controlling equipments, pressure rollers and dancer rollers.
• Air fine equipment in the clean factories without oil mist contamination.
• Polishing equipment for lenses or jewels.
• Precision actuator, etc. in case of requiring a certain output pressure (e.g. spot welding machines, etc.)
• Actuators for emergency uses.
