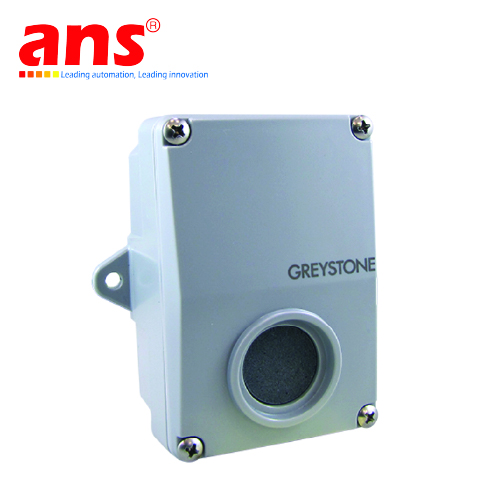

Carbon Monoxide Detector CMD5B1000 GREYSTONE Vietnam

CMD5B1 Series – Carbon Monoxide (CO) Monitor for Indoor Applications

The CMD5B1 Series from Greystone provides reliable and accurate carbon monoxide monitoring using a high-quality electrochemical sensor. With flexible output options, optional alarm relays, and a compact wall-mountable design, the CMD5B1 is the ideal choice for commercial and residential spaces requiring safe CO level control.

🔹 Key Features

• High-accuracy electrochemical sensor
  Factory calibrated with accuracy of ±5 ppm or ±5% of reading, whichever is greater.

• Flexible industrial outputs
  Available with 4–20 mA, 0–10 VDC, or Modbus communication for easy integration with HVAC, DDC, or PLC systems.

• Optional onboard alarm relay
  Select models include an SPDT relay for direct alarming at configurable trip points (25, 60, or 150 ppm).

• Durable enclosure
  Housed in an ABS or polycarbonate casing, rated IP65/NEMA4X, designed for reliable operation in demanding environments.

• Wide operating range
  Temperature: -20 °C to +50 °C, Humidity: 15–95% RH non-condensing.

• Fast response & long sensor life
  T90 response time <35 seconds with less than 5% annual drift. Sensor life expectancy up to 7 years.
