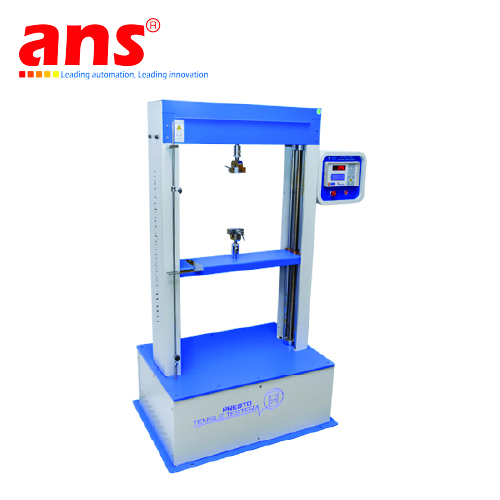

ATTM 50 Tensile Tester Computerised Presto Vietnam

Features of Tensile Testing Machine Computer Based -Zeus Ultimo

• The Graphical representation depicts Force Vs Time.
• 10 Sample Reports can be seen at a time on a single report and can be saved on the desktop for future access.
• Reports can further be E-mailed.
• Data can be recorded in a spreadsheet.
• Company details can be recorded on the report.
• Pass/Fail criteria can be programmed.

Technical specifications

• Travel length of the machine is from 250mm to 700 mm from grip to grip.
• Customized set of grips are also available with the instrument.
• The machine is available with the capacity of 250kgf with the least count of 100 grams
• It’s a floor standing model of C.R.E. Type.
• The testing instrument has an automatic cut off facility.
• It provides cross head travel length of 800mm without grips.
• The load sensor provides accuracy of +0.5% of the load cell.
• The tensile tester digital model is equipped with an internal load calibration function.
• Speed of AC drive with 50 to 500 mm per minute variable.
• It is equipped with the tensile card of 16 bit ADC and DAC, 1927 or 945a.
• Power Requirement is Single Phase 220-240 V AC with the frequency of 50 Hertz.
