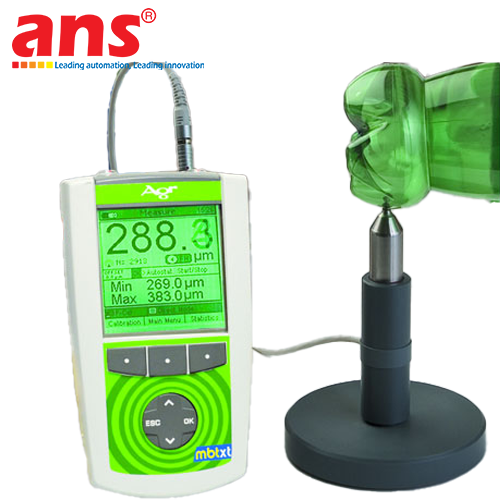

The Agr International MBT 7200XT Portable Non-Ferrous Thickness Gauge is 100% designed, engineered, and manufactured in the United States by Agr International, Inc. – the world-renowned technological pioneer with more than 95 years of specialized innovation in packaging quality inspection systems. Specifically engineered to meet rigorous container quality assurance standards, the MBT 7200XT resolves the challenges of measuring wall thickness in products with intricate contours, tight radii, and recessed geometry where conventional mechanical calipers or ultrasonic gauges cannot reliably reach.

The operating principle of the Agr MBT 7200XT is grounded in proven Hall Effect technology. The system employs an external magnetic sensing probe paired with a precision-machined steel target ball placed inside the container. The Hall sensor embedded within the probe head accurately measures the magnetic flux density between the internal magnet and the target ball. The internal digital processor calculates and displays the exact distance between the probe tip and the target ball in real time—corresponding precisely to the material wall thickness. The measurement process is completely non-destructive, allowing operators to smoothly trace across the sidewalls, corners, base, and finish of containers without scratching or distorting delicate surfaces.

The all-digital architecture of the XT platform completely eliminates noise interference from adjacent plant machinery, ensuring consistent, repeatable readings with resolution down to 0.001 mm. The instrument accommodates a standard thickness range of 0 to 10 mm, with optional probe and ball configurations extending capabilities up to 24 mm to support everything from ultra-lightweight containers to heavy-duty glass jars. Featuring continuous Min/Max capture routines, programmable offset calibration, and seamless digital data export to PCs and SPC data management networks, the Agr MBT 7200XT stands as an essential quality control instrument across blowmolding lines, beverage bottling plants, pharmaceutical packaging suites, and certified materials laboratories.

• Manufacturer: Agr International, Inc.
• Origin: 100% USA (United States)
• Product Series: Portable Non-Ferrous Thickness Measuring Gauge
• Model: MBT 7200XT
• Operating Principle: Hall Effect technology utilizing a magnetic probe and precision target steel balls
• Testing Method: Non-destructive testing (NDT)
• Measuring Range:
  - Standard Range: 0 to 10 mm (0 to 0.400 in)
  - Extended Range: Up to 24 mm (0 to 0.945 in) with optional extended probe and target ball configurations
• Compatible Materials: All non-ferrous materials (PET, rPET, HDPE, PP, glass, aluminum, brass, rubber, composites, molded plastics)
• Measurement Accuracy: ±(1% of reading + 0.01 mm) or better depending on probe and target ball selection
• Display Resolution: 0.001 mm / 0.01 mm (0.0001 in / 0.001 in)
• Data Sampling Rate: High-speed digital sampling for real-time capture
• Measurement Modes: Real-time thickness readout, Min Capture (thinnest point), Max Capture (thickest point), Differential mode
• Target Balls: Assortment of high-precision magnetic target balls in various standard diameters (1.5 mm, 2.5 mm, 4.0 mm, 6.0 mm, 9.0 mm, etc.)
• Sensor Probes: High-sensitivity Hall effect magnetic probes with wear-resistant contact tips
• Calibration Capability: 1-point, 2-point, and multi-point calibration using certified precision reference standards
• Data Interface: RS-232 / USB communication port for direct data streaming to external PCs, printers, or plant SPC networks
• Display Screen: High-contrast digital readout showing real-time thickness, min/max values, and calibration status
• Power Supply: Built-in rechargeable battery pack or direct AC line power adapter (100 - 240 VAC)
• Mechanical Form Factor: Compact, portable, and ergonomically balanced for both at-the-line factory floors and laboratory environments
• Applicable Industries: PET/rPET bottle manufacturing and preform injection molding, glass container and tableware plants, brewing and beverage bottling facilities (F&B), aluminum beverage can fabrication, pharmaceutical and cosmetic packaging, thermoformed plastic packaging, automotive plastic components, and accredited materials testing laboratories.
