The Agr International Hand Held Thickness Probe (Model: HHTP2000 / Configuration Order Code: C193 HHTP-2000) is 100% designed, engineered, and manufactured in the United States by Agr International, Inc. – the internationally acclaimed authority with nearly a century of technological excellence in packaging quality assurance systems. Specifically engineered to deliver fast, effortless, and highly accurate material thickness distribution checks, the HHTP2000 provides an agile one-piece evaluation instrument optimized for high-throughput plant operations and laboratory quality audits.

The definitive technological strength of the Agr HHTP2000 lies in Agr's proven "touch and measure" capacitive thickness sensing architecture. When the probe tip touches the exterior surface of a part, the effective electrical capacitance of the sensor changes in direct proportion to the average thickness of the non-conductive material. The digital processor instantaneously converts and displays this variation as an exact thickness reading. Most importantly, the instrument executes single-sided measurement WITHOUT REQUIRING TARGET BALLS OR COUPLING FLUIDS. This revolutionary capability entirely eliminates the risk of internal sample contamination, making it uniquely qualified for critical applications in pharmaceutical blow-fill-seal suites, sterile medical devices, and food-grade packaging where introducing loose steel balls or ultrasonic couplant gel is strictly prohibited.

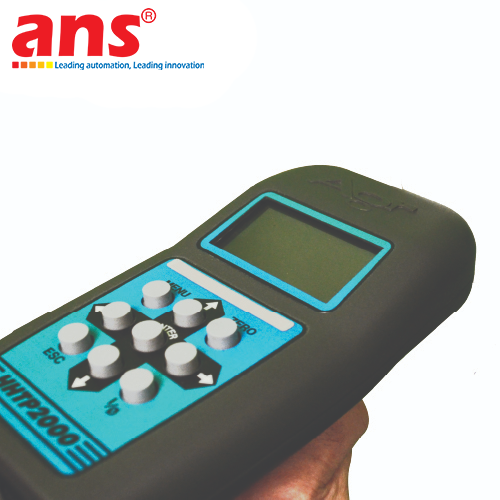

Mechanically optimized for operator comfort, the HHTP2000 features a lightweight, gun-style ergonomic design weighing just 1.2 lbs (approx. 550 g). It accommodates material thicknesses up to 5 mm (0.20 in.) and incorporates an intelligent Min/Max mode that enables technicians to sweep along containers to dynamically detect thin walls or heavy spots. A convenient trigger-activated save mechanism logs critical readings directly into an onboard non-volatile memory holding up to 14,000 data points, with seamless data export via the integrated RS-232 serial port. Completed with an easily field-replaceable probe tip and an integrated long-life rechargeable battery, the Agr HHTP2000 is an indispensable inspection standard for large roto-molded vessels, glass hollowware, automotive exterior skins, and thermoformed plastic assemblies.

• Manufacturer: Agr International, Inc.
• Origin: 100% USA (United States)
• Product Series: Portable Capacitive Thickness Testing Device
• Model / Order Code: HHTP2000 (C193 HHTP-2000)
• Operating Principle: Agr's proprietary "Touch and Measure" capacitive thickness technology
• Key Advantages:
  - Single-sided measurement capability
  - Does NOT require target balls
  - Does NOT require couplant fluids or gels
  - Eliminates product contamination risks completely
• Measuring Range: Measures materials up to 5.0 mm thick (0.20 inches)
• Target Material Compatibility: Non-conductive materials (Glass, molded plastics, ceramics, composites, roto-molded polymers)
• Operating Modes:
  - Continuous read operation
  - Min/Max scanning mode for rapid detection of thick or thin spots
  - Integrated trigger-activated data save
• Internal Data Storage: Onboard capacity up to 14,000 individual measurement values
• Digital Communication Port: RS-232 serial port for direct data download to PCs or data loggers
• Sensing Probe Tip: High-durability, field-replaceable probe tip module
• Digital Display: Integrated high-contrast LCD screen on the instrument body
• Mechanical Construction: One-piece, handheld, gun-style ergonomic housing
• Instrument Net Weight: Extremely lightweight, approx. 1.2 lbs (550 g)
• Power Supply: Built-in high-capacity rechargeable battery with extended operational life, supplied with AC line charger
• Applicable Industries: Glass container and hollowware manufacturing, large plastic container blowing (drums, intermediate bulk containers, jerrycans), rotational molding (roto-molded tanks and enclosures), automotive exterior plastic panels and bumpers, cleanroom pharmaceutical packaging, sterile medical device manufacturing, technical ceramics, and off-site quality inspection audits.
