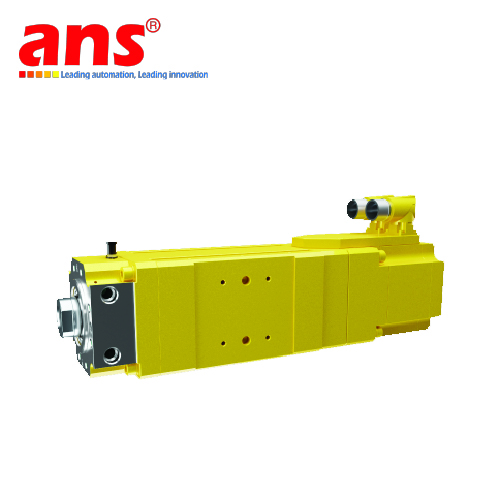

Welding Actuator DA99-D22 Kinegge Vietnam
Price: Contact
Brand: Kinegge S.r.l.
Category: Actuators - Bộ truyền động
Supplier: ansvietnam
Origin: Italy
0911472255Welding Actuator DA99-D22 Kinegge Vietnam
DA99 Actuator – High-Precision Solution for Adhesive and Sealant Dispensing Systems
The DA99 actuator has proven its effectiveness in precisely positioning pistons in adhesive and sealant dispensing assemblies. Featuring a compact and highly accurate roller screw design, the DA99 is capable of transmitting forces of up to 24 kN, making it a powerful and reliable solution for demanding industrial applications.
Its optimized roller screw design combined with advanced hardening technology ensures exceptional reliability and long service life – exceeding 25 million welding cycles.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Rated Force | 13,000 N |
| Peak Force (1 sec) | 24,000 N |
| Dynamic Load Rating | 56,000 N |
| Maximum Speed | 125 mm/s |
| Stroke Length | 190 mm |
| Screw Lead | 2.5 mm/rev |
| Base Dimensions | 99 x 99 mm (cross-section), 350 mm (length) |
| Base Weight | 13 kg |
| Protection Class | IP65 |
| Operating Temperature Range | 0°C to +50°C |
| Service Life | >25 million cycles |
| Maintenance | Grease port for re-lubrication |
| Mounting Options | Front flange / side mounting |
| Position Feedback | Absolute encoder |
| Operating Voltage | 400 V |
With its robust construction, precision mechanics, and long operational life, the DA99 actuator is the ideal choice for automated systems requiring high performance and consistent reliability. Its compact form factor and flexible mounting options ensure smooth integration into modern production environments.
