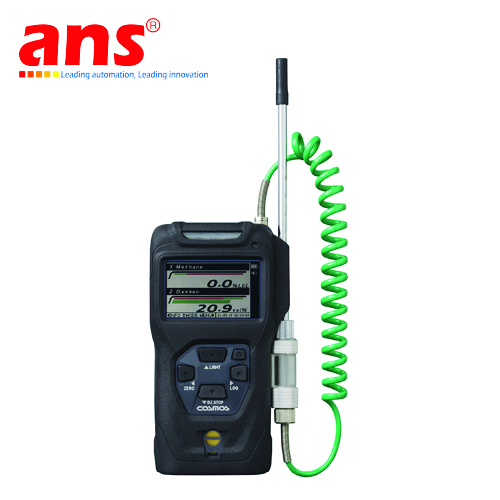

Portable Gas Detector XP-3368II-W NEW COSMOS ELECTRIC Vietnam

Features

• Portable gas detector for detecting combustible gases (ppm~LEL) and oxygen
• Explosion Proof
• Capable of detecting a wide range of combustible gases from low concentrations to explosive concentrations all in one unit.
• Impact Resistant
• In addition to its set target gases, capable of being converted to detect 32 additional gases as well. *Applicable when the first target gas is set as methane, isobutane, or propane.
• Up to five types of combustible gas can be set as target gases at the time of purchase (optional)

Purpose

• Detects combustible gas leaks and oxygen deficiency

Specifications

• Target Gases Combustible gases, combustible solvent vapor, oxygen
• Sensor Type Combustible gases, combustible solvent vapor : Catalytic-type
• Oxygen : Galvanic cell-type
• Sampling Method Automatic suction-type
• Detection Range Combustible gas and combustible solvent vapor: 0 to 100% lower explosive limit *Can be switched to ppm display
• Oxygen: 0 to 25 vol%
• Alarm [Alarm set value]
• Combustible gases, combustible solvent vapor: 20% lower explosive limit
• Oxygen: 18vol%
• [Alarm indication]
• Buzzer sounds, alarm lamp (red) flashes, and LCD display
• Explosion Proof Intrisically explosion proof(flammable gas sensors part is explosion proof)
• Alkaline battery specifications: Ex ia da IIC T4 Ga
• Nickel-metal hydride battery specifications: Ex ia da IIC T3 Ga
• Protection Rating IP67 equivalent
• Dimensions Approx. W91 x H164 x D44mm
• Weight Approx. 460g (including batteries)
• Operating Temperature and Humidity Range -20 to 50°C, 95% RH or less (However, there should be no condensation or sudden changes in temperature or humidity)
• Continuous Use Time Approx. 15 hours
• *At 25°C, no alarm, backlight off, data logging off, and Bluetooth off. Varies depending on environmental conditions, usage conditions, storage period, battery manufacturer, etc.
