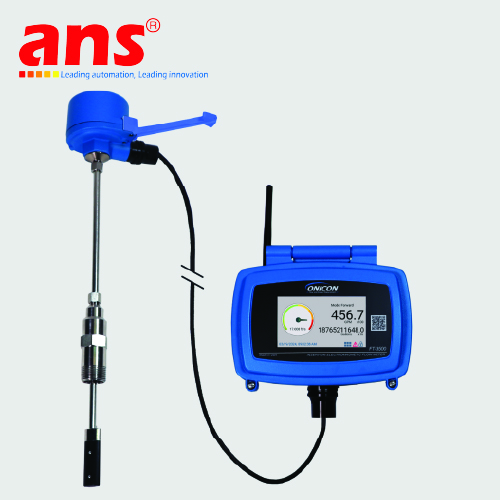

FT-3500 – Versatile Insertion Electromagnetic Flow & Energy Measurement System

The ONICON FT-3500 series delivers precision electromagnetic flow measurement combined with optional thermal energy metering in a versatile insertion-style design. Engineered to measure conductive liquids across a wide range of applications, the FT-3500 is equipped with a remote touchscreen display for intuitive access to measurement data, application details, and configuration settings.

Its advanced transmitter supports native BACnet and MODBUS protocols via IP or RS485, along with dual analog outputs for flow or thermal power. The FT-3500 also features high-resolution frequency output and three programmable pulse outputs for totalizing or alarm signaling.

Compatible with pipe sizes from 1¼" to 72", the FT-3500 incorporates ONICON’s exclusive hot-tap design, allowing for easy installation or removal without special tools and without interrupting the flow. With a low-maintenance design and factory pre-configuration, the device is ready for immediate operation upon delivery.


Typical Applications

  • Chilled water, hot water

  • Domestic water supply

  • Condenser water

  • Water/glycol mixtures

  • Municipal water systems


Key Features

High Accuracy

  • High-performance sensor design with continuous auto-zero functionality ensures superior sensitivity and accuracy, even at low flow rates.

  • Each unit is individually wet-calibrated to an accuracy of ±1% of reading.

Simple Installation & Operation

  • Factory pre-configured for plug-and-play deployment—no field programming required.

Outstanding Long-Term Reliability

  • Non-moving-part flow sensor technology delivers dependable performance in challenging applications such as open-loop condenser water systems.

Ideal Retrofit Solution

  • Innovative hot-tap design allows insertion into pressurized lines without shutting down the system.

Remote Touchscreen Display

  • User-friendly interface provides full access to measurement data and programming functions.

Optional BTU (Thermal Energy) Measurement

  • When ordered with the BTU option, the FT-3500 becomes a complete thermal energy metering system, delivering precise flow, energy, and temperature data.
